BRAND:  yolink        MODEL: YS5003-dn25s

Sale Off
1

description:

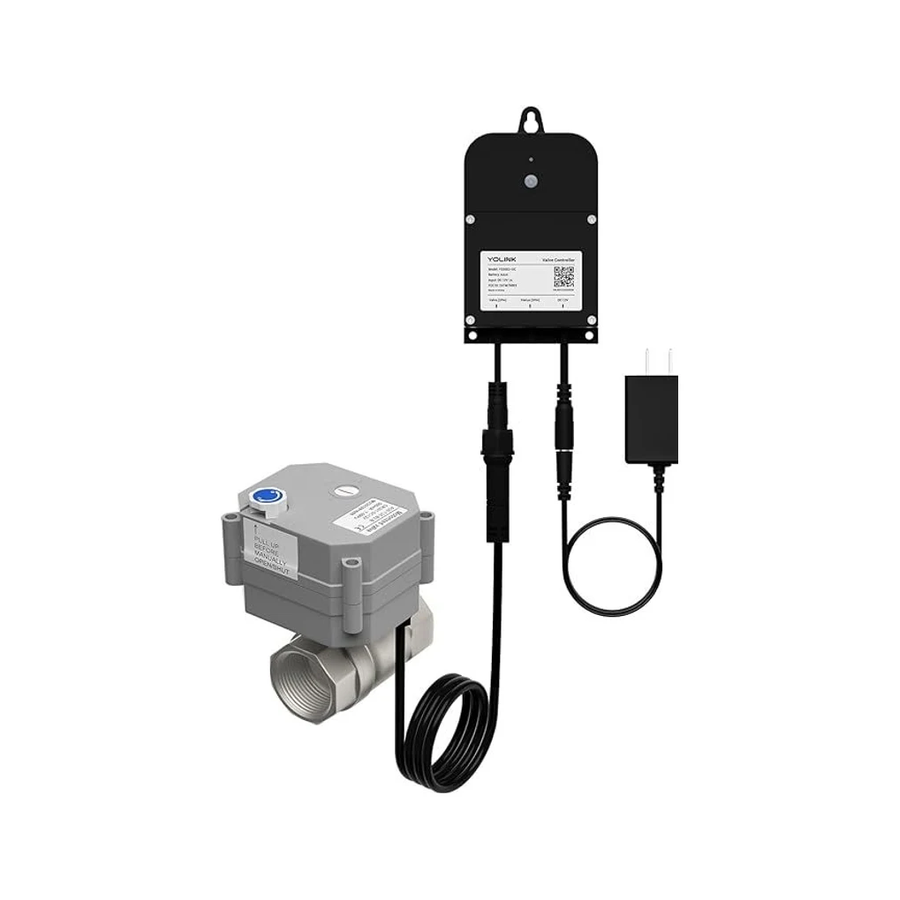

A water control kit, including the Valve Controller 2 (Model YS5003) with a 1-inch stainless steel motorized valve.


 price:

$219.95


This product requires a YoLink Hub or SpeakerHub!

YOUR PURCHASE INCLUDES:

Free U.S. Shipping, Orders $50 & Up

Hassle-Free 60 Day Returns

2-Year Warranty (Controller)

1-Year Warranty (Valve)

Do-It-Yourself Installation

U.S. Phone Support Available

100% Satisfaction Goal





THIS PRODUCT IS COMPATIBLE WITH:

Alexa

IFTTT

Home Assistant

Google

Raedius Web Console



  • INTRO
  • APPLICATIONS
  • SPECS
  • REQUIREMENTS
  • DOCS
  • VIDEOS
  • FAQs
  • MORE
  • REVIEWS
Introduction:

A smart wireless water control kit, including the Valve Controller 2 (Model YS5003) with a 1-inch stainless steel motorized valve.

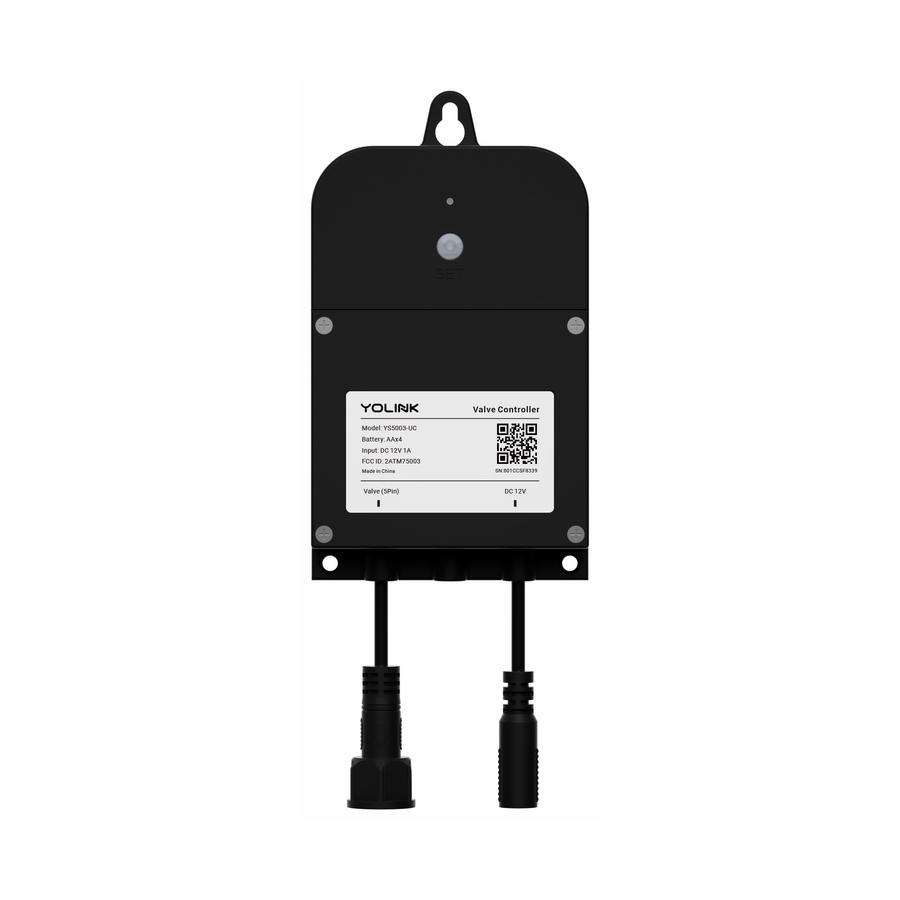

Valve Controller Features:

  • Wireless communication: no wiring required for operation or remote control
  • LoRa long-range/low-power technology offers 2+ years battery life, compared to 1+ year for other brands
  • Supervised/monitored device: the valve controller is monitored 24/7 by YoLink cloud servers, via an electronic heart beat system, checking the device for online presence, state (open/closed), wireless signal strength, and battery level - ensures your water valve will operate when needed
  • Battery-powered (four standard alkaline AA batteries, included)
  • Alexa, Google voice assistant, Home Assistant and IFTTT integration
  • YoLink Control D2D device-to-device pairing allows for the valve controller to be directly controlled by YoLink water sensors or other devices, without an internet connection, and without power ("No WiFi, No Internet, No Power - No Problem!")
  • YoLink’s industry-leading long range communication (1/4 mile, open air!) allows for operation in larger homes and in areas difficult for other wireless systems, such as basements, separate garages/structures, and even outside your home

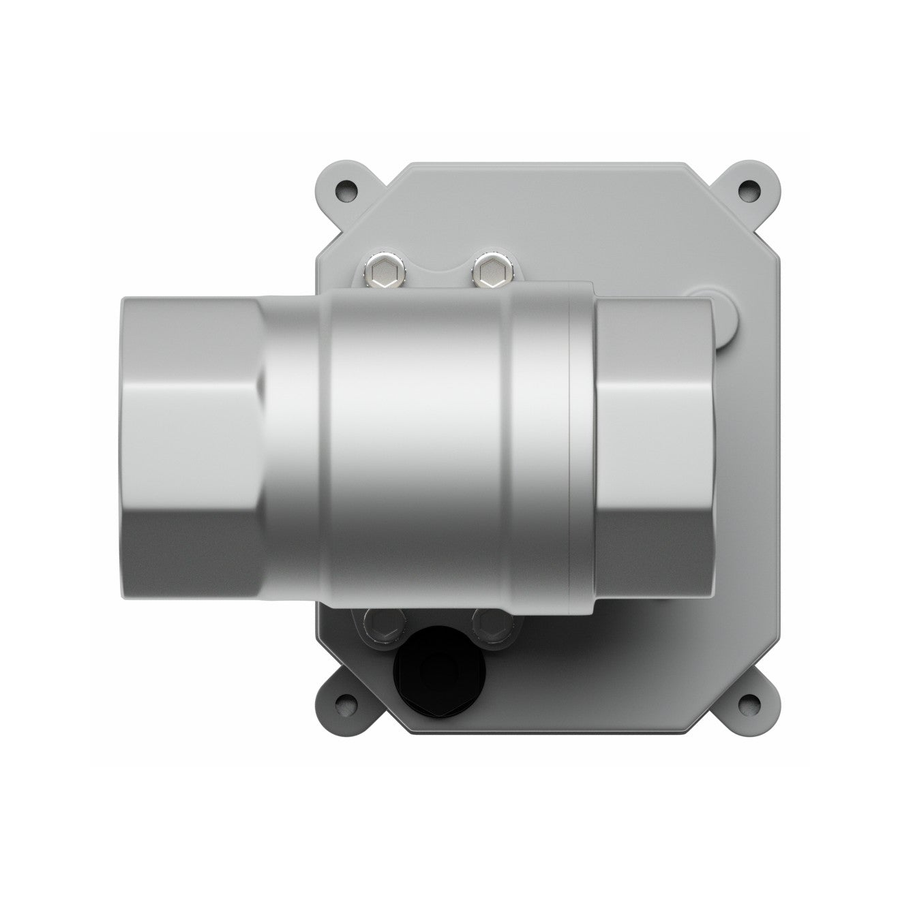

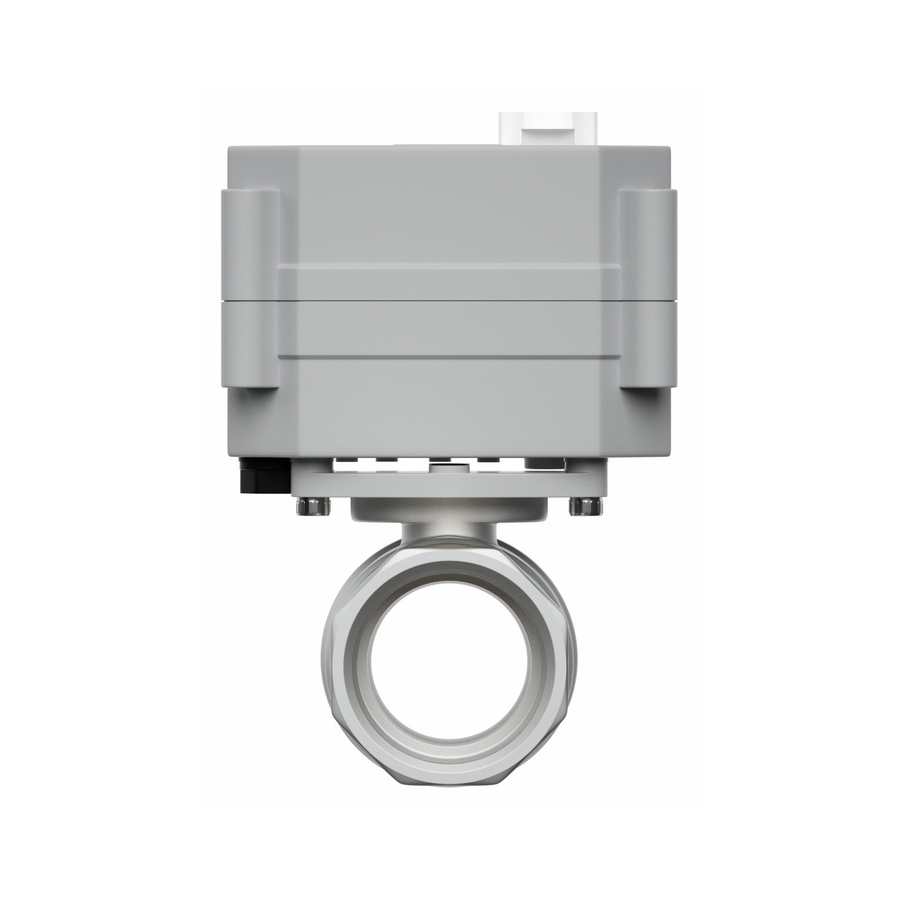

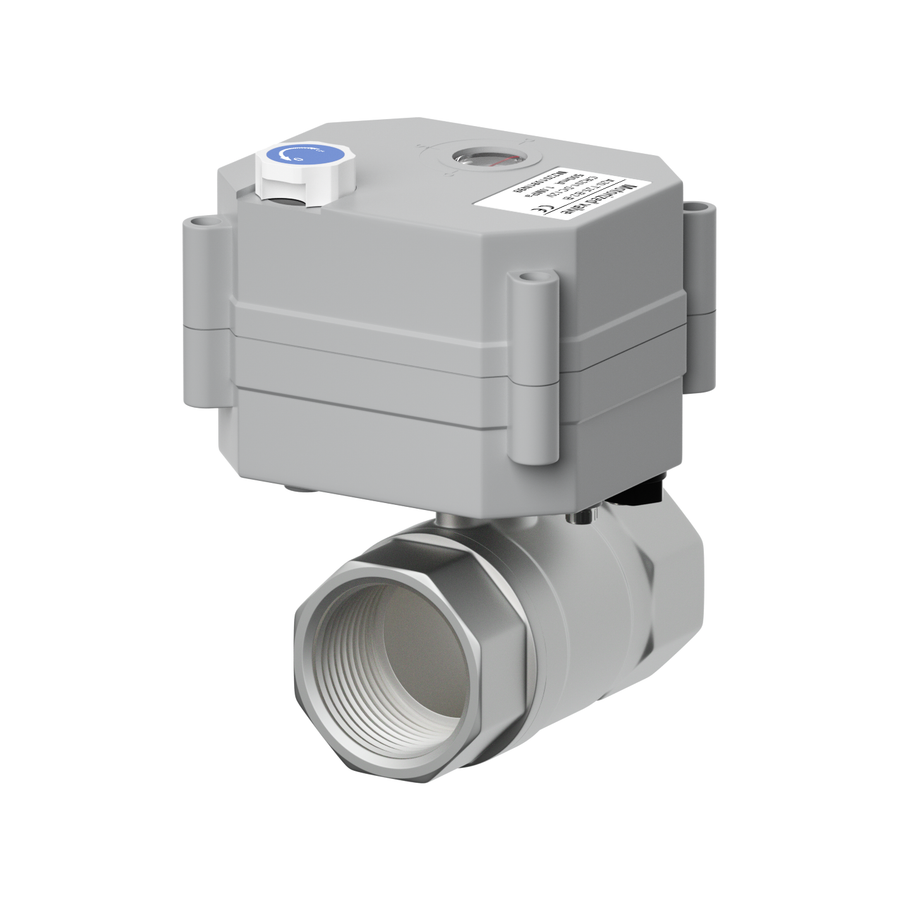

Motorized Valve Features:

  • 12VDC low-voltage operation
  • Manual operation knob
  • Valve position indicator window
  • Valve position status output (when sold with the valve status-equipped YS5003S Valve Controller 2)
  • Zero bore reduction
  • IP67 rated
  • Replaceable motor assembly
  • Available in stainless steel or brass body



What's in the box?

(1) Stainless Steel Motorized Valve
(1) Valve Controller 2 (Model YS5003)
(4) AA Batteries (Pre-installed)
(1) Quick Start Guide


Warranty:

Valve: One Year
Valve Controller: Two Years

Applications:
  • General water control
  • Remotely turn the water on or off at your condo, rental property, summer/winter home while not in use
  • Prevent unauthorized use, by turning off water lines
  • Use the YoLink Water Leak Sensor to automatically shut off the water when a leak is detected, preventing costly damages (Water Leak Sensor sold separately)
  • Control your swimming pool water level. Add our Water Level Monitoring Sensor and automate water top-off
  • Shut off water to your lawn sprinkler system during the winter months, preventing water from freezing in the pipes
  • Automate pet and livestock watering, with remote control and preset schedules (consider pairing your water valve controller with the Water Leak Sensor 2 with water level detection)
  • Connect the valve to HPT Hose Pipe Fittings, to connect to and control garden hoses, for control of lawn sprinklers and swimming pool water level (consider our Water Level Monitoring Sensor, for automatic water level top-off systems)
  • Gray water dump valve for RVs
Specifications:


Valve Controller 2:

Housing IP Rating: IP66

Voltage Out: DC 12VDC

Standby Current:

    .9 mA (on battery power)

    1.5 mA (on external power)

Current Draw (Operating): 28.6 mA + device current draw

Power Supply Amperage: 1.0 Amps

Power Supply Cord Length: 59” (1.5 meters)

Environment Temp. Range: -4° to 122°F (-20° to 50°C)

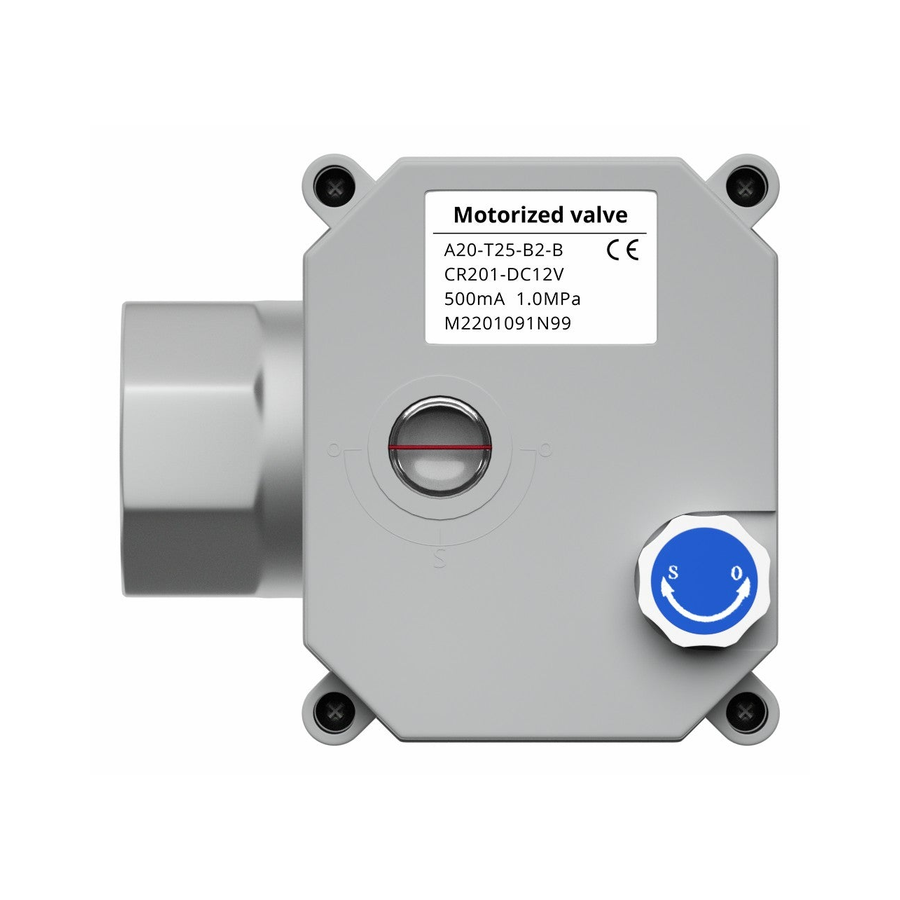

Motorized Valve:

Power: 12VDC

Applicable Water Pipe Size: (Same as Valve Size)

Thread: Female NPT

Position Indicator: Yes

Manual Control: Yes

Valve Body Material: Stainless Steel

Actuator Material: Engineered Plastics

Open/Closed Time: Less Than 5 Sec

Suitable Media: Air, Water

Max. Torque Force For Actuator: 2 N.M

Cable Length: 0.5 Meters

Max Working Pressure: 145PSI (1.0MPA)

Working Current: Max 500Ma While in Operation (Opening or Closing; no Current Draw in Standby Mode)

IP Rating: IP65

Environmental:

  Liquid Temperature Range: 35.6° to 194°F (2° to 90°C)

  Environment Temperature Range: -5 to 122F (-15° to 50°C)

Requirements:
  • YoLink Hub with an internet connection (wired Ethernet or 2.4GHz Wi-Fi). Refer to the Hub user guide for additional information
  • Smartphone or tablet running iOS 9 or higher, Android 4.4 or higher
  • Tools Required: Pipe wrench, locking pliers, pipe cutting tool, sandpaper (refer to the installation manual for the full list)
  • Installation Difficulty Level: Moderate difficulty (depending on plumbing experience and tool availability)

Title

File Type

Language

Videos:
Video
Video
FAQs:

Q: Can I manually operate the valve? A: Yes. The valve has a manual operation knob on the top.

Q: Are the batteries replaceable? A: Yes. The battery cover is accessible from the top of the motorized valve. Open the cover using a small or medium sized Phillips screwdriver.

Q: Is this weather-resistant, can it be used outside? A: Yes, it is weather-resistant and it can be used outdoors.

This product is a member of the following product collections:

Smart Water Control

Water Leak Protection System Collection

Smart Water Solutions Collection

Motorized Valves

The Smart Water Leak Protection System:

Video

Automatic water shut-off, upon the detection of a water leak, even if the internet and WiFi is down, even if the power is out! Made possible by LoRa-based wireless technology (that does NOT rely on WiFi) and by Control-D2D device-to-device pairing (that creates a link between your leak sensors and your valve controller, that works regardless of internet and power). Click to watch the video, click below to learn more and build your own system.


⭐⭐⭐⭐⭐


"Save expensive repairs"


Amazon Customer "LouieLouie"

December 12, 2022



This product should be in every town building code to eliminate any leaks in water or gas!

read more


Source: Amazon

⭐⭐⭐⭐⭐


"Great value and works very well"


Amazon Customer Michael Robinson

October 27, 2022


I was looking at different options of shutting off the water case of a leak most of them were very expensive and didn't serve areas that were critical water damage. This gives you an option of not using power or Wi-Fi to able to shut off water in case of loss of power. With the app you control the valve on or off at your own demand. I recommend this product for anyone who is looking for a peace of mind for freezing or burst pipes in there home.  read more

⭐⭐⭐⭐⭐


"It just works!"


Amazon Customer "Jab8778"

September 18, 2022


I tried other automated valve shut-off motors, and they just didn't have the power to do the job. This motorized ball valve replaced my manual 1" ball valve on my sprinkler main line. I am able to schedule the opening and closing for the hours that my system runs, and even turn it on/off remotely if needed. I installed this because I had a stuck sprinkler zone valve that ran the pump all day. read more

⭐⭐⭐⭐⭐


"Recommend, works great"


Amazon Customer "Glenn D"

November 12, 2022


Easy to install and is a money saver in emergencies. Tested and works as advertised.  read more

⭐⭐⭐⭐⭐


"Very Reliable and Easy Setup"


Amazon Customer "Brian"

October 7, 2022


I purchased the YoLink Hub, water valve controller, and several water leak sensors. I placed the sensors throughout my house at all the water connections (washer, vanities, toilets, kitchen sink etc.). Very easy to setup and couldn't be happier. I did have a few questions so contacted tech support and they answered the phone immediately and provided excellent service. read more
