YS4909

YoLink Water Valve Controller

Name: YoLink Water Valve Controller
Brand: YoLink
SKU: YS4909
Price: 59.99 USD
Availability: InStock

$59.99 ~~$69.99~~ In stock

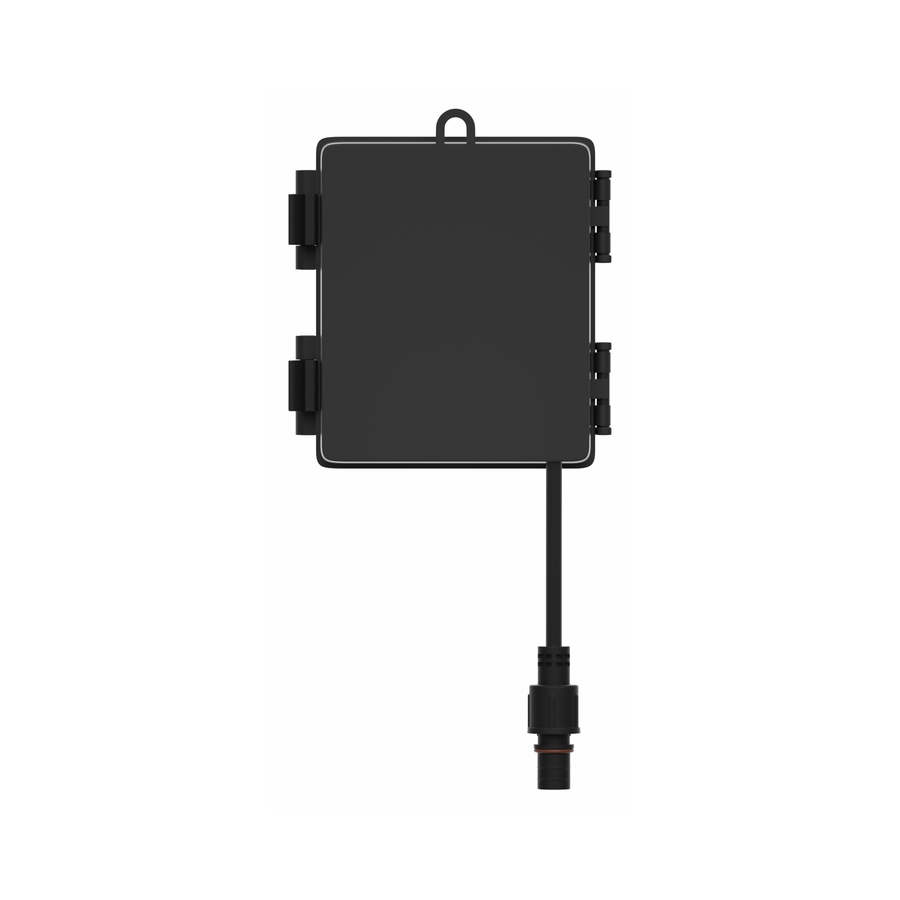

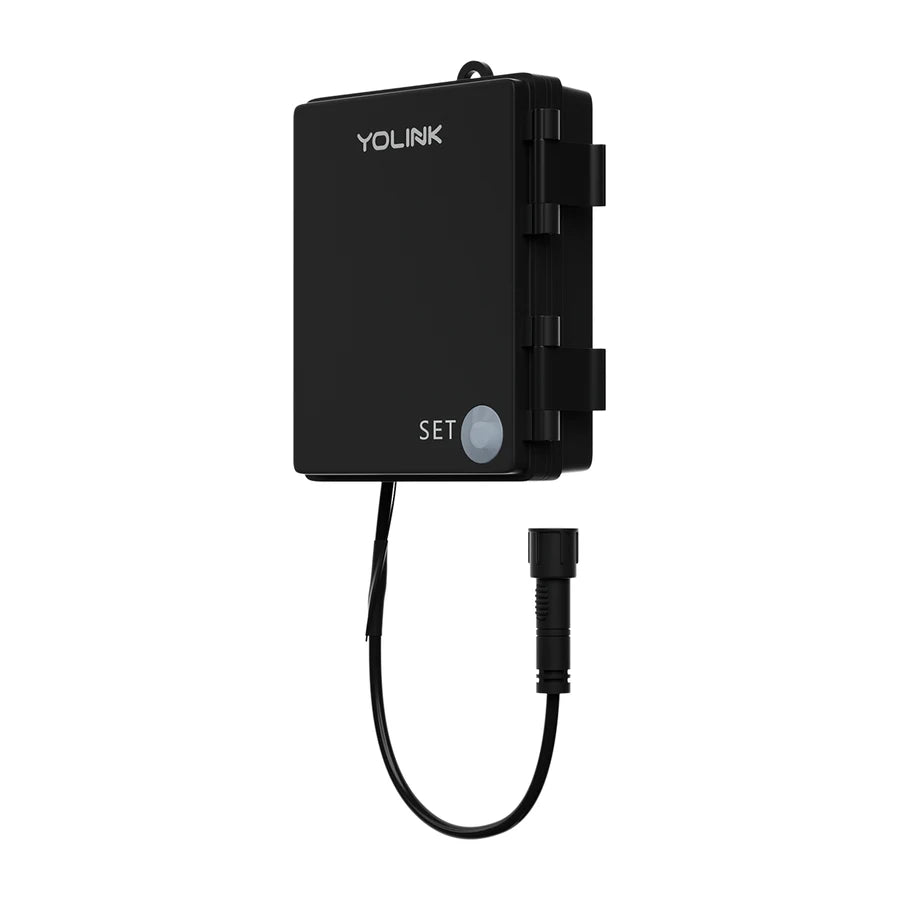

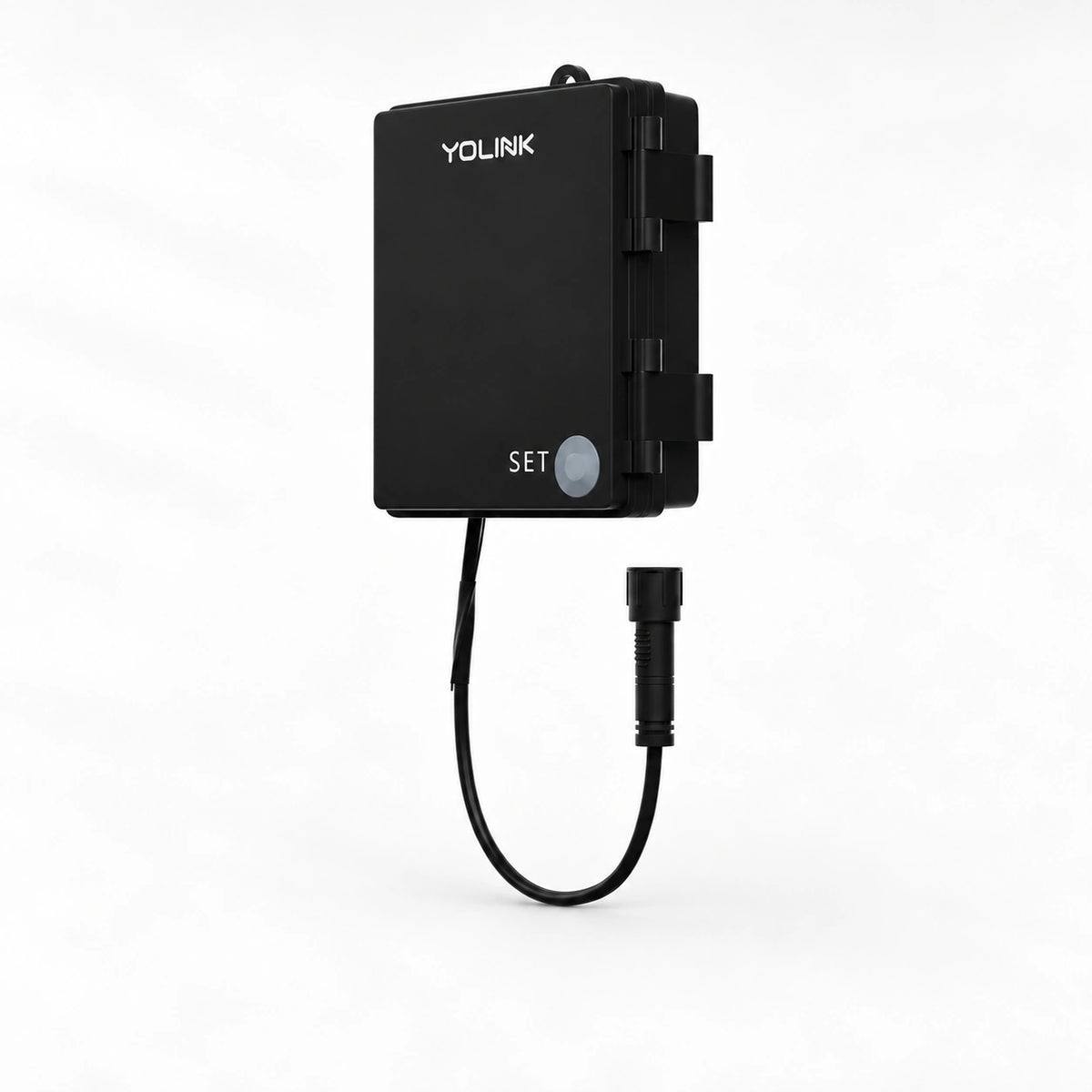

YoLink Water Valve Controller — product-only photograph on smooth neutral off-white with soft diffused daylight shadows

View larger image

Before you buy

YoLink hub required; sold separately.

Description

Confirm valve type, bracket fit, and operating torque before installation.

Smart Water Valve Controller converts a ball-type (only) water valve manipulator to a smart valve.

The manipulator is not included.

Amazon/Google Assistant and IFTTT integration.

Prevent unauthorized use, by turning off water lines.

Automatic Valve Time: 5–10 seconds.

Leak-triggered shutoff needs a compatible sensor and prior setup. Check the local-action and power requirements for the controller and connected valve.

Compare shutoff options · Outage requirements · Device offline? Troubleshoot

Specifications

Compatible pipe sizes: ½ in (DN15), ¾ in (DN20), 1 in (DN25)
Compatible manipulator: 12 V DC ball-valve manipulator
Power: 6 V DC (four alkaline non-rechargeable AA batteries)
Operating temperature: -4°F - 122°F (-20°C - 50°C) (The pipe must not freeze)
Operating humidity: 0–95% non-condensing
Ingress rating: IP63 (Rainproof)
Output Voltage: 12 V DC
Current draw: ≤ 160 mA (on, without connecting with the manipulator/motorized valve), ≤ 90uA (standby)

Manuals & support

Valve Controller 1 · English · PDFInstallation & user guideOpen manual Setup & troubleshootingBrowse product guidesView support Questions about this product?Contact YoLink supportGet help

Shipping, returns & warranty

Shipping

Free Shipping for Orders $50 and Up (U.S. Only)

Shipping policy ↗

Returns

60-day returns from delivery. Customer-paid return shipping; condition and restocking terms apply.

Return policy ↗

Warranty

Review the product warranty terms.

Warranty terms ↗

DOESN'T WORK

NEw vALvE COnTroller DOesn'T WORk. ANd your ResponsE bOx kEEps cHanging LEtters TO caps.

Second One Worked

The first controller I received would open a closed motorized valve but would not close; so it was useless. The second one works fine. You need to improve your testing so that faulty controllers are not sent out.

Works well in ground but poor insulation from moisture

After 3 months in an irrigation box in the ground connected to the Yolink valve installed on the water supply line the controller stopped working because the batteries inside the controller box got wet. The rubber gasket inside the little controller battery box is thin, weak and easily disturbed so as to not seal the box against moisture. I had to replace it and put it inside a zip lock bag, hoping this will keep it dry.

Water valve controller

The replacement went well. However it was not intuitive finding the replacement on the website.
