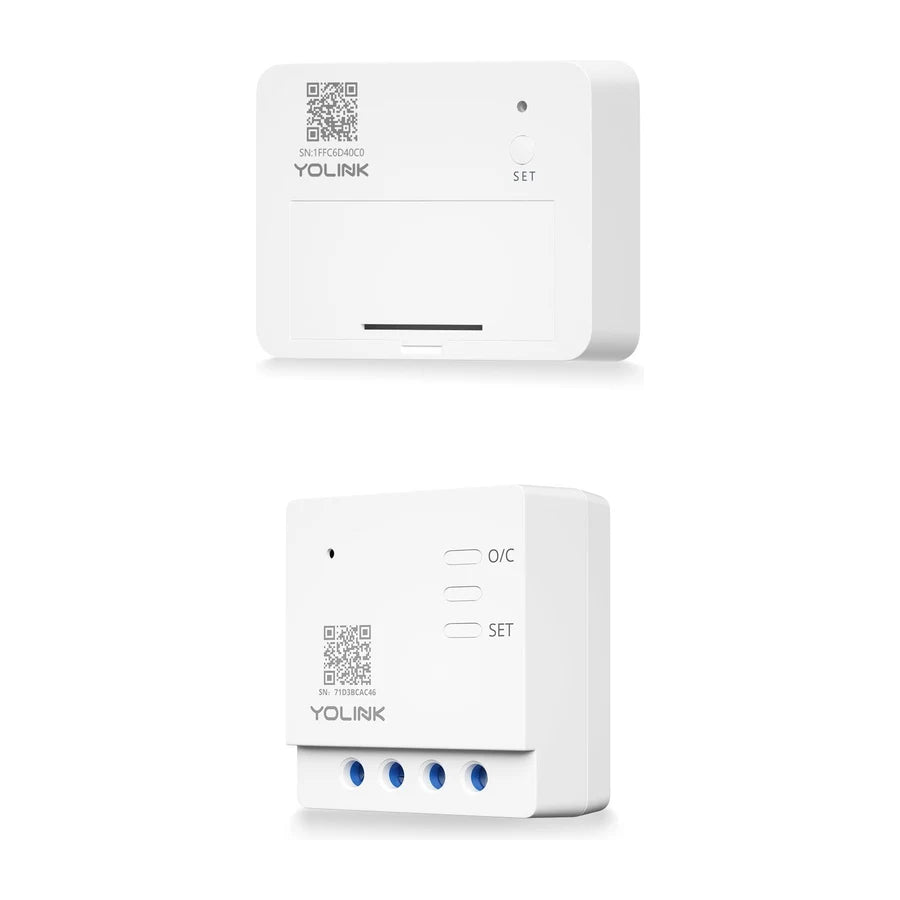

Smart Garage Door Kit 1: Garage Door Controller, Garage Door Sensor (YoLink Hub Required)

  • $45.99
  • $49.99
Shipping calculated at checkout.

Customer Reviews

Based on 11 reviews
100%
(11)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Joel Johnson
Smart garage door kit

I had an older garage door opener. It wasn't very clear which terminals I needed to connect to. After some trial and error I found it. Every now and then the controller wouldn't connect to the speaker hub. Since I don't have direct view to the door, having that app is a great help.

M
Mike Fritschle
Garage Door Controller, Garage Door Sensor

These accessories are very easy to set up and compact in size. The app works flawlessly, so easy to use and see if your garage door is open or closed from your phone. Highly recommended!!

G
Geoffrey Gariepy
This is better than the homebrew I was going to build.

I've wanted to automate my garage door opener for years. I had plans, partially implemented, to use a Raspberry Pi with magnetic reed switches, a relay block, and custom code to build this out. I am a professional software developer, so I could have made this work, but it was a fair bit of effort that I just couldn't quite find the time to make happen.

I got the two related YoLink devices in the mail, the garage door sensor and the garage door controller, plus the hub I already had. Within about 20 minutes, I had the whole thing working and available across the Internet. Installation was super easy, and the setup was trivial. It just works.

Use the right tool for the job. For automating a garage door opener that didn't come from the factory with that capability, the YoLink setup is the right tool!

R
RMurphy
Works exactly as described.

I'm always thrilled when something does exactly what it says it will do. Easy installation, easy set up (well, okay, I didn't realize the sensor thing would not show up as a separate device in the app even though it is a separate piece, and that kind of confused me for awhile), and I am very happy with the results. No clicker in the car. So long as I have my phone, I'm good.

S
Steven Birnbaum
Yolink Systems

Setup is easy. Once the hub is up and running addibg devices is simple and stright forward. Integration with the Echo dot (Alexa) is seamless. Had a number of power failures which switched to generator and back. Every device and the system. Ome right back up. Tje Garage sensor and Controller turns a 16 year opener into a smart system. Support is top notch.

SUMMARY:
  • The YoLink Garage Door Kit includes a YoLink Garage Door Controller and Garage Door Sensor for one standard sectional, tilt-up, or roll-up door. Used together they can make most non-smart garage door operators and doors smart (check compatibility before purchasing)



FEATURES:

  • The Garage Door Controller connects to your existing door operator or control button allowing for control by the YoLink app
  • The Garage Door Sensor monitors and reports the open/closed status of the garage door
  • YoLink Control allows for the Door Sensor to directly control other YoLink devices, without an internet connection
  • YoLink’s industry-leading long range communication and low-power operation
  • Alexa and Google voice assistant integration



BENEFITS:

  • Surprisingly simple installation, that requires no special technical knowledge or tools — the only tool required is a small slotted screwdriver, thanks to factory-installed 3M™ brand double-sided mounting tape
  • Add to your YoLink system quickly and easily using the YoLink app with Scan & Play
  • Use the YoLink app and always know the open/closed status of your garage door, from anywhere at any time
  • Use the YoLink app to remotely close or open your garage door
  • Keep your family, home, and property safe with the Open-Remind app feature, which will inform you when the door is left open too long
  • As part of your long-range/low-power YoLink smart home system, enjoy the reliability and carefree operation with garage door sensor batteries that can last 5 or more years



SUGGESTED PRODUCTS:



REQUIREMENTS:

  • YoLink Hub with an internet connection (wired Ethernet or 2.4GHz Wi-Fi). Refer to the Hub user guide for additional information
  • Garage Door Opener
  • Smartphone or tablet running iOS 9 or higher, Android 4.4 or higher
  • Tools Required: Slotted screwdriver
  • Installation Difficulty Level: Moderately Easy



TECHNICAL SPECS:

  • Semtech® LoRa® RF Module YL09 microcontroller with 32-Bit RISC processor
  • Color: White
  • Dimensions
  • Door Sensor [L x W x D]: 3.54 x 2.40 x .71 inches (89.91 x 60.96 x 68.83 mm)
  • Controller [L x W x D]: 2.09 x 1.93 x .98 inches (53.09 x 49.02 x 75.69 mm)
  • Open/Close Button (Controller)
  • Multi-color status LED
  • Set button
  • Controller Power: 5 Volts DC
  • Sensor Power: 2 AAA batteries (3V DC)
  • Environmental:
  • Operating Temperature Range: -4°F – 122°F (-20°C – 50°C)
  • Operating Humidity Range: 10 – 90% non-condensing
  • Intended for indoor use only



PACKAGE CONTENTS:

  • (1) Garage Door Controller
  • (1) Garage Door Sensor
  • (1) Power Adapter
  • (1) USB Cable
  • (1) Signal Wire
  • (1) Quick Start Guide



PLEASE NOTE:

  • Check your garage door operator for compatibility before purchasing! (See the compatibility page); If Garage Door Kit 1 is not compatible with your garage door operator, Garage Door Kit 2 will be 100% compatible.
  • Garage door operators can be dangerous if not installed or used properly. Please read the Installation & User Guide before installation and follow all safety recommendations.
  • The Garage Door Kit is packaged with a quick start guide only. Please download the current Installation & User Guide



ADDITIONAL RESOURCES:

COMPATIBLE OPERATORS:

All-O-Matic SL-100DC

ALEKO AR900 | AR1400 | AC2700 | AC5700 | AC1500 | AC2400 | AC1400

AIPHONE JO-1FD

4 DOORS GA103

ALLSTAR 3000| 3500 | 3500P | J3500 | 6000 | 6500 | 6500P | J6500 | AC9300 | AC9500 | ACJ9500 | MVP | MVP-SQ

B & D Diamond

CRAFTSMAN 20057933 | 13953960SRT1 | 13953968SRT1 | 139.53970SRT1 | 139.53971SRT1 | 139.53973SRT1 | 13954930 | 13953982SRT | 13953963SRT | 13953964SRT | 13953699SR | 1395364812 | 13953525SRT | 13953535SRT1 | 139535383SRT3 | 13953627SRT | 13953628SRT | 13953636SRT | 13953640SRT | 13953641SRT | 13953315SR | 13953415SR | 13953615SR | 139.653 | 139.53992D | 139.54918 | 139.54931 | 139.54985 | 139.54990 | 139.53964SRT | 139.53920D | 139.53989 | 139.53992D | 139.10159* | 139.10160* | 139.53225SRT | 139.53325SRT | 139.53425SRT | 139.53628SRT | 139.53629SRT | 139.53635SRT | 139.53637SRT | 139.53824SRT | 139.53525SRT | 139.53627SRT | 139.53636SRT | 139.53640SRT | 139.53641SRT | 13953961 | 13953961SRT | 13953962SRT | 13953962SRT1 | 13953874 | 13953974SRT | 13953975SRT1 | 13953976 | 13953977SRT | 13953978 | 13953978SRT | 13953978SRT1 | 13953661SRT3 | 13953662SRT2 | 13953670SRT1 | 13953671SRT3 | 13953672SRT3 | 13953673SRT3 | 13953674SRT3 | 13953675SRT2 | 13953677SRT3 | 13953834SRT4 | 13953644SRT | 13953645SRT3 | 13953646SRT2 | 13953647SRT1 | 13953648SRT2 | 13953650SRT | 13953660SRT1 | 13918673 | 13918674 | 13918887 | 13918897 | 13918973 | 13918974 | 13953335SRT3 | 13918054 | 13918056 | 13918451D | 13918452D | 13918453D | 13918473D | 13918654 | 13918654 | 139.53961 | 139.53962SRT1 | 139.53974 | 139.53954 | 139.53961SRT | 139.53681B | 139.53638SRT | 139.53675SRT | 139.53910 | 139.53910D | 139.30437 | 139.18875 | 139.18876 | 139.18975 | 139.18975 | 139.18696 | 139.18803 | 139.18805 | 139.18814 | 139.18830 | 139.18850 | 139.18851 | 139.18865 | 139.18866 | 139.18076 | 139.18086 | 139.18096 | 139.18675 | 139.1876 | 139.18686 | 13953982SRT | 1395398511 | 13953985DM | 13953990D | 13953993D | 13953995SRT | 13953901DM | 13953905DM | 13953915D | 13953916D | 13953918D | 13953930D | 13953930DM | 13918405D | 13918458DM | 13918470D | 13918489D | 13918555 | 13918658 | 13918658 | 13918659 | 13918660 | 139.53985D | 139.53985DM | 139.53990 | 139.53990D | 139.53992 | 13918058 | 13918059 | 13918060 | 139.53985 | 139.18458D | 139.18585D | 139.18586D | 139.53914 | 139.53924 | 139.53918D | 139-53315 | 139-53415 | 139-53615 | 139-53625 | 139-53699 | 139-53403 | 139-53413 | 139-53606 | 139-53610 | 139-53664SRT2 | 139-53930D | 139-53985

CHAMBERLAIN Liftmaster B500* | Liftmaster B503* | Liftmaster B510* | PowerDriver-PD300 | WD822K | WD822KL | PowerDriver-PD200D | Liftmaster-3245 | Liftmaster-3255 | Liftmaster-3255-2 | Liftmaster-3265 | Liftmaster-3265CM | Liftmaster-3265CM-267 | M385 | HD600 | 995XD | HD150DM | HD175DM | 7902 | 7902K | 248754 | HD900D | 1000SDR | 2000SDR | HD210* | HD220* | HD220C* | PD220* | PD222* | HD520EV* | HD420EV* | PD612EV* | HD920EV* | HD930EV* | LW5000EV* | WD962KEV* | WD962KPEV* | WD962MLEV* | 349544* | Liftmaster 2110 | 2220 | 2220-267 | Liftmaster 1240R | 1245R | 1246R | 1255R | 1256R | 1265LMC | 1345 | 1346 | 1355 | 1356 | Liftmaster 3130M | 3240M | Liftmaster 3280 | 3280-267 | 3280M | 3280M-267 | 248730 | Liftmaster 3585S | Liftmaster 3800 | Liftmaster 3850 | Liftmaster Elite 8500* | 8550* | Merlin-MT230 | PowerDrive HD200D | HD400D | LW2000 | LW3000 | PD210 | PD212D | PD610D | PD612D | PD752D | PD752KLD | WhisperDrive WD832KEV* | WD832KEVG* | WF Series | WhisperDriver-248739 | WD822KD | WD832KD | WhisperDrive 459950 | 547445

GENIE GPS-IC Series | Aladdin | Chainglide GCG | H | PCG | Genie Pro 1028 | GPower 900 | IntelliG01000 | IntelliG01200 | IS900-1, IS900-2, IS920, ISL950, ISL980, Series IS, Series ISL, Series IC, Series H | PowerMAX 1200 | 1500 | SC1200 | SC1500 | Pro 1022 | 1024 | 1042 | ProMAX | StealthMAX | ScrewDrive H | IS | ISL | Series-III 2564 | 3022 | 3024 | 3042 | 3062 | 3064 | 4022 | 4024 | 4042 | 4062 |4064 * Special Wiring! | Trilog-900

GUARDIAN Pro-628

HORNMANN 5500 | 7500 | 8500

LINEAR Allister | LDO

MARANTEC M4500e | M4700e | M-4500 | M-4700 | MAClift | M55 | Synergy

MARTIN DC2500 | DC3700e

OVERHEAD-DOOR Destiny | Odyssey *** Certain versions only. | Legacy | Phantom

SOMMER 550 | 800

WAYNE DALTON Quantum 3214 | 3314
