YS1603

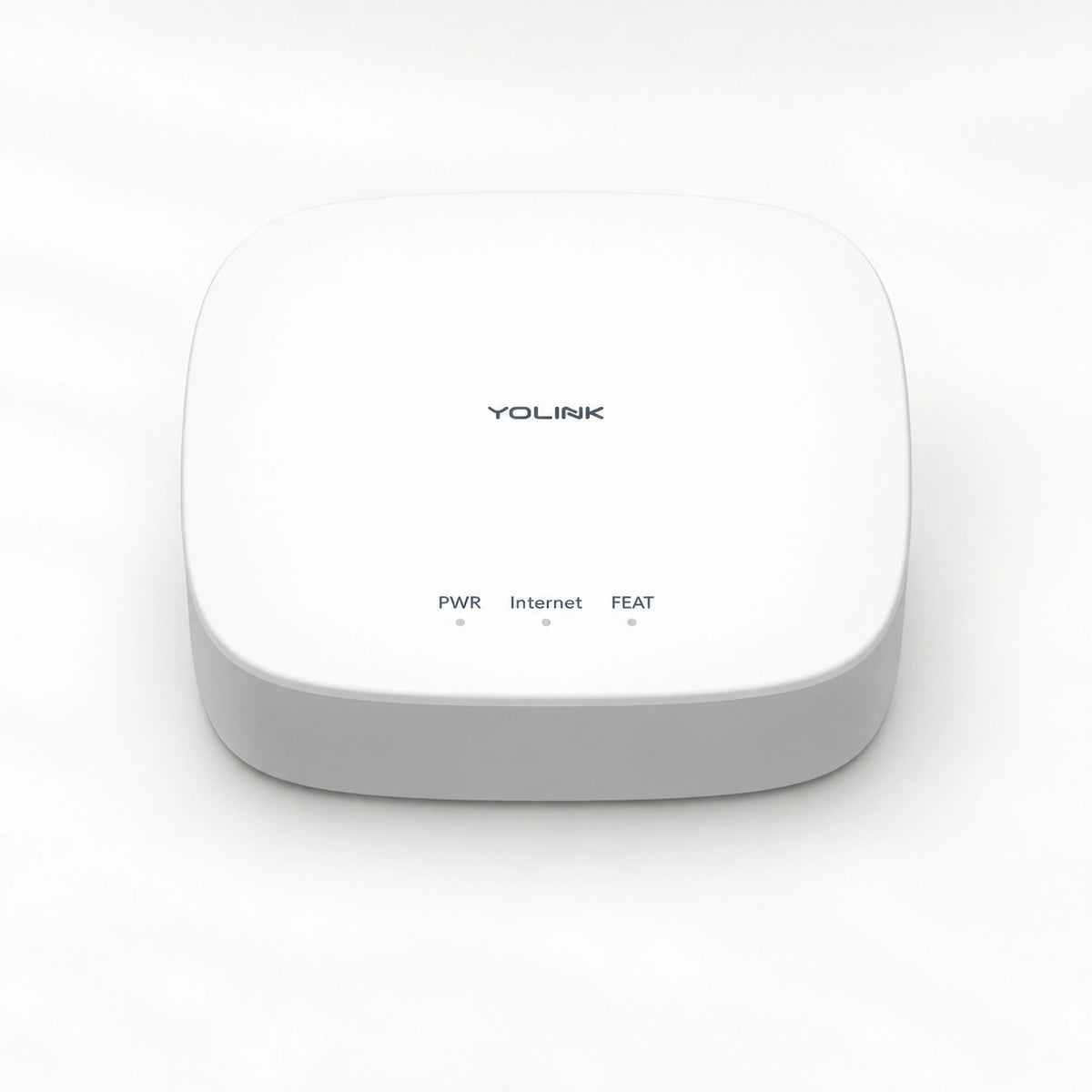

YoLink Hub
Description
Connect compatible YoLink sensors and controllers to the YoLink app through Ethernet or 2.4 GHz Wi-Fi.
An internet connection and a power outlet are required for app access.
Remote notifications require the hub, router and internet connection to stay powered and online. The hub does not provide its own battery backup.
Want spoken alerts? SpeakerHub provides sound and speech. Want configured local rules or a Local API/Matter integration? Review Local Hub and the exact devices/functions you need.
The built-in Home Assistant YoLink connection uses the cloud; buying Local Hub does not automatically make that connection local.
Outage requirements · Device offline? Troubleshoot · Compare cloud and local integration paths · SpeakerHub and Alexa functions · View YoLink Hub · View SpeakerHub · View YoLink Hub 3 · View YoLink Local Hub · View YoLink X3 Hub
Specifications
- Connection
- Ethernet or 2.4 GHz Wi-Fi
- Power
- 5 Volts DC, 1 Amp
- Use / installation
- Indoor, Only
- Operating humidity
- <95% non-condensing
- Operating temperature
- −20°C–40°C (−4°F–104°F)
- Dimensions
- 110 × 110 × 27 mm (4.33 × 4.33 × 1.06 in)
- Processor
- Semtech® LoRa® RF Module YL09 microcontroller with 32-Bit RISC processor
- Color
- White
