SUMMARY:

The YoLink Garage Door Kit includes a YoLink Garage Door Controller and Garage Door Sensor for one standard sectional, tilt-up, or roll-up door. Used together they can make most non-smart garage door operators and doors smart (check compatibility before purchasing)

FEATURES:

The Garage Door Controller connects to your existing door operator or control button allowing for control by the YoLink app
The Garage Door Sensor monitors and reports the open/closed status of the garage door
YoLink Control allows for the Door Sensor to directly control other YoLink devices, without an internet connection
YoLink’s industry-leading long range communication and low-power operation
Alexa and Google voice assistant integration

BENEFITS:

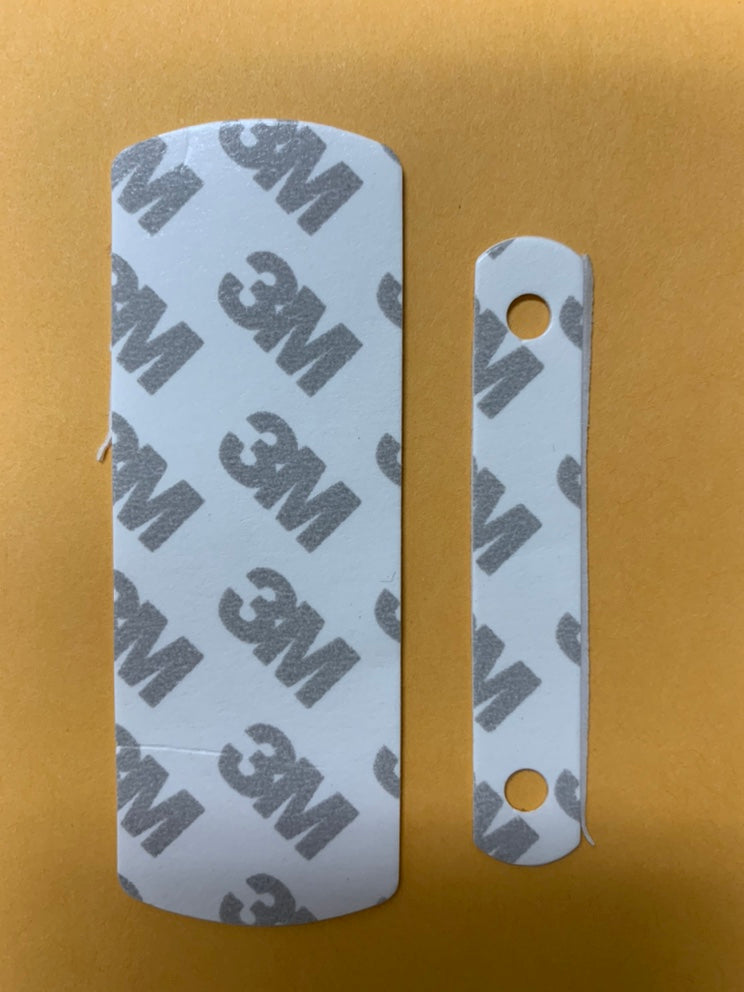

Surprisingly simple installation, that requires no special technical knowledge or tools — the only tool required is a small slotted screwdriver, thanks to factory-installed 3M™ brand double-sided mounting tape
Add to your YoLink system quickly and easily using the YoLink app with Scan & Play
Use the YoLink app and always know the open/closed status of your garage door, from anywhere at any time
Use the YoLink app to remotely close or open your garage door
Keep your family, home, and property safe with the Open-Remind app feature, which will inform you when the door is left open too long
As part of your long-range/low-power YoLink smart home system, enjoy the reliability and carefree operation with garage door sensor batteries that can last 5 or more years

SUGGESTED PRODUCTS:

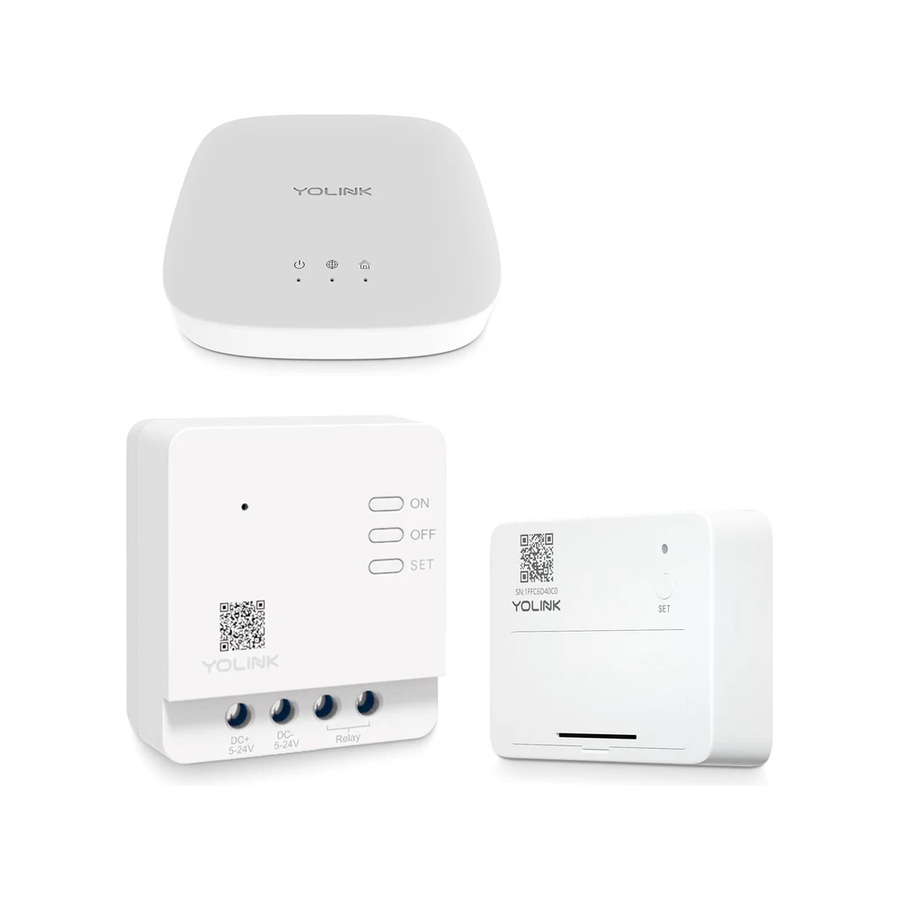

YoLink Hub is required. Starting your first YoLink system? Consider Garage Door Kit 1 with Hub
Pair your Garage Door Sensor with the YoLink Siren Alarm, for security applications

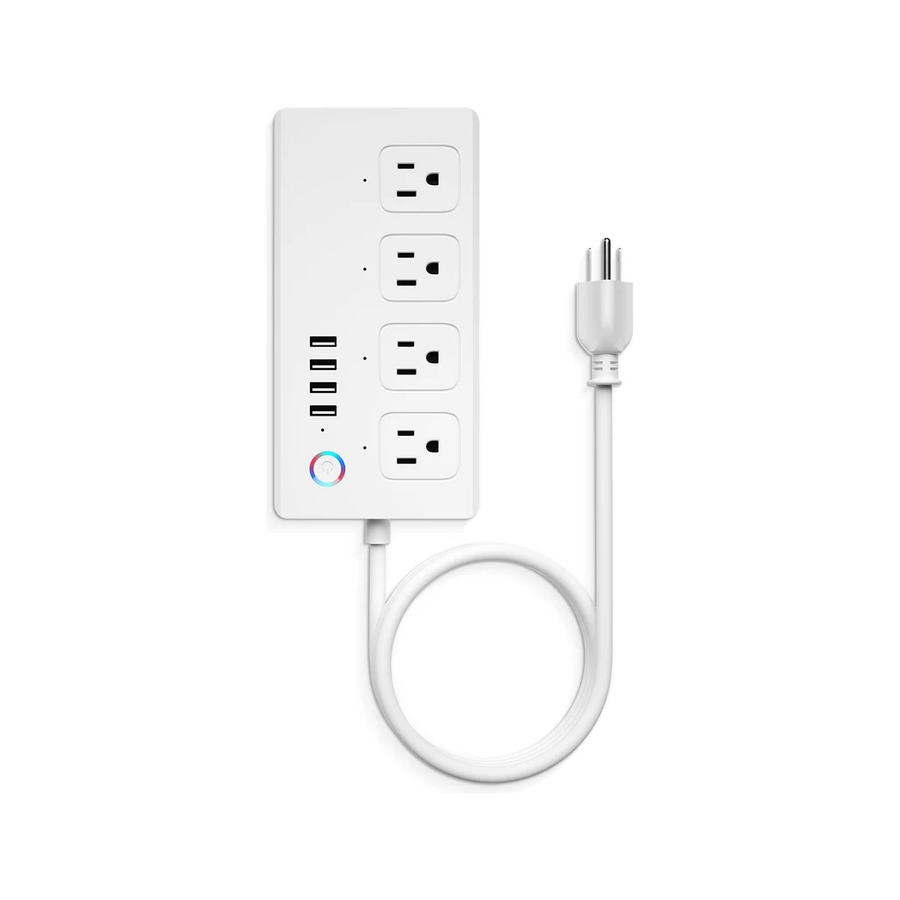

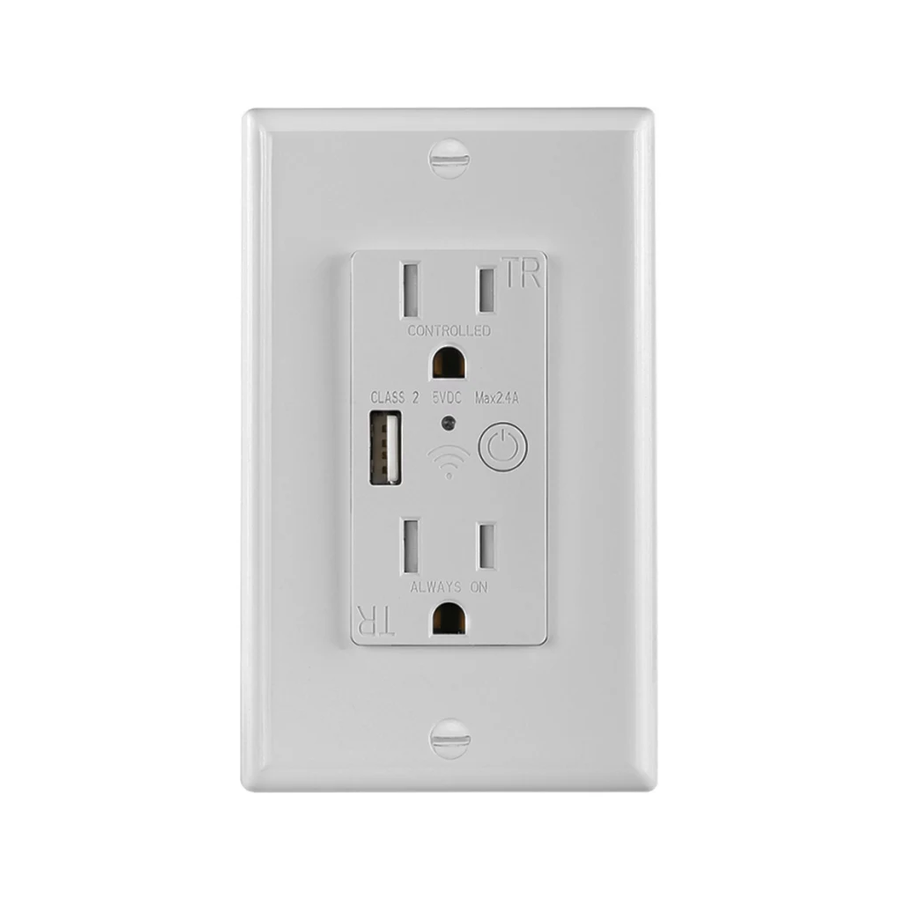

Pair your Garage Door Sensor with smart plugs/outlets and control lights and other 120V-powered devices/equipment with a YoLink In-Wall Switch, In-Wall Outlet, Plug, Plug Mini, Power Strip, or Outdoor Plug

REQUIREMENTS:

YoLink Hub with an internet connection (wired Ethernet or 2.4GHz Wi-Fi). Refer to the Hub user guide for additional information
Garage Door Opener
Smartphone or tablet running iOS 9 or higher, Android 4.4 or higher
Tools Required: Slotted screwdriver
Installation Difficulty Level: Moderately Easy

TECHNICAL SPECS:

Semtech® LoRa® RF Module YL09 microcontroller with 32-Bit RISC processor
Color: White
Dimensions
Door Sensor [L x W x D]: 3.54 x 2.40 x .71 inches (89.91 x 60.96 x 68.83 mm)
Controller [L x W x D]: 2.09 x 1.93 x .98 inches (53.09 x 49.02 x 75.69 mm)
Open/Close Button (Controller)
Multi-color status LED
Set button
Controller Power: 5 Volts DC
Sensor Power: 2 AAA batteries (3V DC)
Environmental:
Operating Temperature Range: -4°F – 122°F (-20°C – 50°C)
Operating Humidity Range: 10 – 90% non-condensing
Intended for indoor use only

PACKAGE CONTENTS:

(1) Garage Door Controller
(1) Garage Door Sensor
(1) Power Adapter
(1) USB Cable
(1) Signal Wire
(1) Quick Start Guide

PLEASE NOTE:

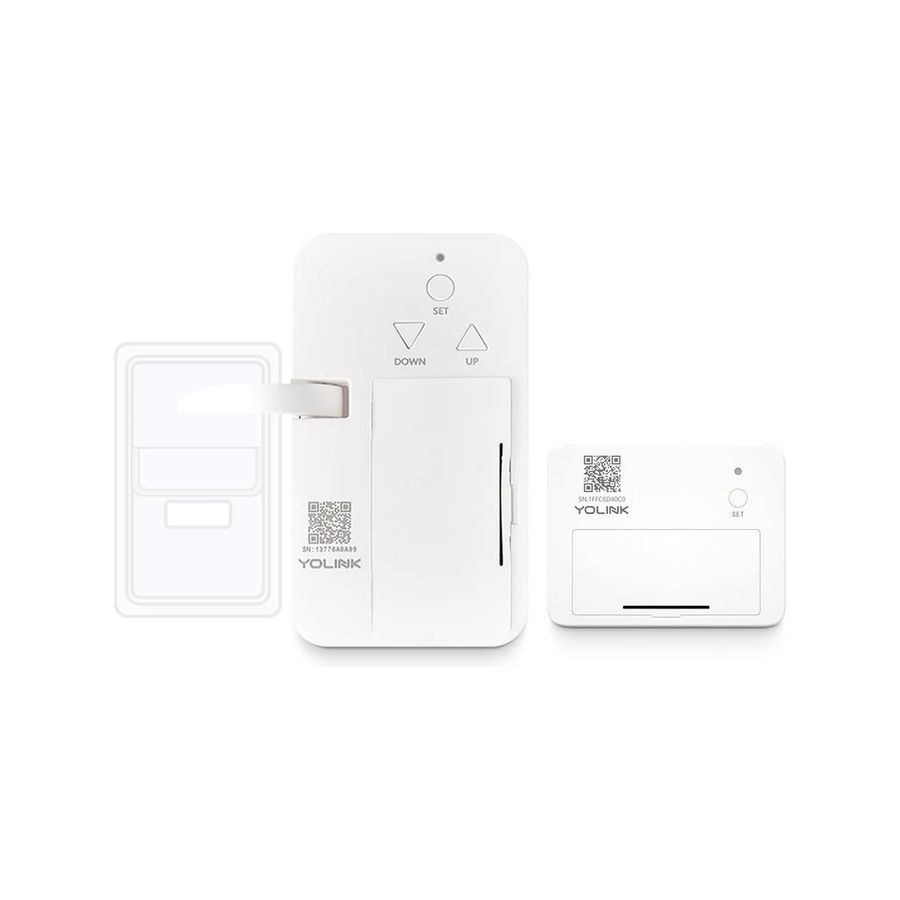

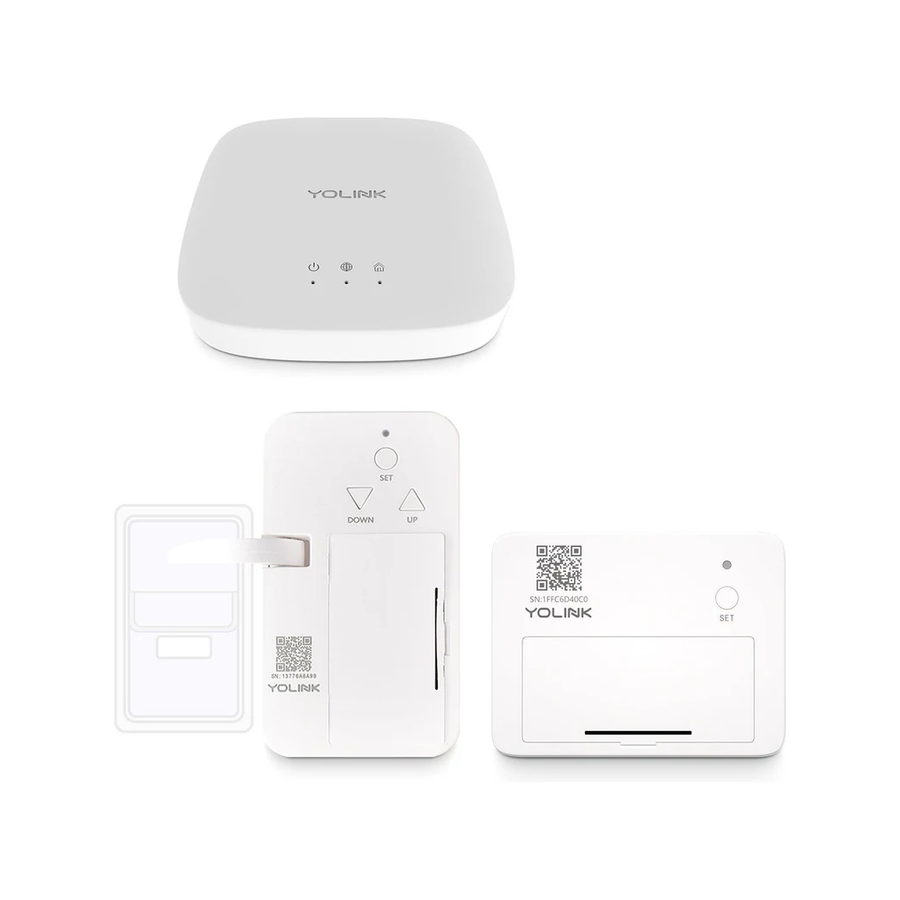

Check your garage door operator for compatibility before purchasing! (See the list below); If Garage Door Kit 1 is not compatible with your garage door operator, Garage Door Kit 2 will be 100% compatible.
Garage door operators can be dangerous if not installed or used properly. Please read the Installation & User Guide before installation and follow all safety recommendations.
The Garage Door Kit is packaged with a quick start guide only. Please download the current Installation & User Guide

ADDITIONAL RESOURCES:

COMPATIBLE OPERATORS:

All-O-Matic SL-100DC

ALEKO AR900 | AR1400 | AC2700 | AC5700 | AC1500 | AC2400 | AC1400

AIPHONE JO-1FD

4 DOORS GA103

ALLSTAR 3000| 3500 | 3500P | J3500 | 6000 | 6500 | 6500P | J6500 | AC9300 | AC9500 | ACJ9500 | MVP | MVP-SQ

B & D Diamond

CRAFTSMAN 20057933 | 13953960SRT1 | 13953968SRT1 | 139.53970SRT1 | 139.53971SRT1 | 139.53973SRT1 | 13954930 | 13953982SRT | 13953963SRT | 13953964SRT | 13953699SR | 1395364812 | 13953525SRT | 13953535SRT1 | 139535383SRT3 | 13953627SRT | 13953628SRT | 13953636SRT | 13953640SRT | 13953641SRT | 13953315SR | 13953415SR | 13953615SR | 139.653 | 139.53992D | 139.54918 | 139.54931 | 139.54985 | 139.54990 | 139.53964SRT | 139.53920D | 139.53989 | 139.53992D | 139.10159* | 139.10160* | 139.53225SRT | 139.53325SRT | 139.53425SRT | 139.53628SRT | 139.53629SRT | 139.53635SRT | 139.53637SRT | 139.53824SRT | 139.53525SRT | 139.53627SRT | 139.53636SRT | 139.53640SRT | 139.53641SRT | 13953961 | 13953961SRT | 13953962SRT | 13953962SRT1 | 13953874 | 13953974SRT | 13953975SRT1 | 13953976 | 13953977SRT | 13953978 | 13953978SRT | 13953978SRT1 | 13953661SRT3 | 13953662SRT2 | 13953670SRT1 | 13953671SRT3 | 13953672SRT3 | 13953673SRT3 | 13953674SRT3 | 13953675SRT2 | 13953677SRT3 | 13953834SRT4 | 13953644SRT | 13953645SRT3 | 13953646SRT2 | 13953647SRT1 | 13953648SRT2 | 13953650SRT | 13953660SRT1 | 13918673 | 13918674 | 13918887 | 13918897 | 13918973 | 13918974 | 13953335SRT3 | 13918054 | 13918056 | 13918451D | 13918452D | 13918453D | 13918473D | 13918654 | 13918654 | 139.53961 | 139.53962SRT1 | 139.53974 | 139.53954 | 139.53961SRT | 139.53681B | 139.53638SRT | 139.53675SRT | 139.53910 | 139.53910D | 139.30437 | 139.18875 | 139.18876 | 139.18975 | 139.18975 | 139.18696 | 139.18803 | 139.18805 | 139.18814 | 139.18830 | 139.18850 | 139.18851 | 139.18865 | 139.18866 | 139.18076 | 139.18086 | 139.18096 | 139.18675 | 139.1876 | 139.18686 | 13953982SRT | 1395398511 | 13953985DM | 13953990D | 13953993D | 13953995SRT | 13953901DM | 13953905DM | 13953915D | 13953916D | 13953918D | 13953930D | 13953930DM | 13918405D | 13918458DM | 13918470D | 13918489D | 13918555 | 13918658 | 13918658 | 13918659 | 13918660 | 139.53985D | 139.53985DM | 139.53990 | 139.53990D | 139.53992 | 13918058 | 13918059 | 13918060 | 139.53985 | 139.18458D | 139.18585D | 139.18586D | 139.53914 | 139.53924 | 139.53918D | 139-53315 | 139-53415 | 139-53615 | 139-53625 | 139-53699 | 139-53403 | 139-53413 | 139-53606 | 139-53610 | 139-53664SRT2 | 139-53930D | 139-53985

CHAMBERLAIN Liftmaster B500* | Liftmaster B503* | Liftmaster B510* | PowerDriver-PD300 | WD822K | WD822KL | PowerDriver-PD200D | Liftmaster-3245 | Liftmaster-3255 | Liftmaster-3255-2 | Liftmaster-3265 | Liftmaster-3265CM | Liftmaster-3265CM-267 | M385 | HD600 | 995XD | HD150DM | HD175DM | 7902 | 7902K | 248754 | HD900D | 1000SDR | 2000SDR | HD210* | HD220* | HD220C* | PD220* | PD222* | HD520EV* | HD420EV* | PD612EV* | HD920EV* | HD930EV* | LW5000EV* | WD962KEV* | WD962KPEV* | WD962MLEV* | 349544* | Liftmaster 2110 | 2220 | 2220-267 | Liftmaster 1240R | 1245R | 1246R | 1255R | 1256R | 1265LMC | 1345 | 1346 | 1355 | 1356 | Liftmaster 3130M | 3240M | Liftmaster 3280 | 3280-267 | 3280M | 3280M-267 | 248730 | Liftmaster 3585S | Liftmaster 3800 | Liftmaster 3850 | Liftmaster Elite 8500* | 8550* | Merlin-MT230 | PowerDrive HD200D | HD400D | LW2000 | LW3000 | PD210 | PD212D | PD610D | PD612D | PD752D | PD752KLD | WhisperDrive WD832KEV* | WD832KEVG* | WF Series | WhisperDriver-248739 | WD822KD | WD832KD | WhisperDrive 459950 | 547445

GENIE GPS-IC Series | Aladdin | Chainglide GCG | H | PCG | Genie Pro 1028 | GPower 900 | IntelliG01000 | IntelliG01200 | IS900-1, IS900-2, IS920, ISL950, ISL980, Series IS, Series ISL, Series IC, Series H | PowerMAX 1200 | 1500 | SC1200 | SC1500 | Pro 1022 | 1024 | 1042 | ProMAX | StealthMAX | ScrewDrive H | IS | ISL | Series-III 2564 | 3022 | 3024 | 3042 | 3062 | 3064 | 4022 | 4024 | 4042 | 4062 |4064 * Special Wiring! | Trilog-900

GUARDIAN Pro-628

HORNMANN 5500 | 7500 | 8500

LINEAR Allister | LDO

MARANTEC M4500e | M4700e | M-4500 | M-4700 | MAClift | M55 | Synergy

MARTIN DC2500 | DC3700e

OVERHEAD-DOOR Destiny | Odyssey *** Certain versions only. | Legacy | Phantom

SOMMER 550 | 800

WAYNE DALTON Quantum 3214 | 3314
