YS7704

Door Sensor

Name: Door Sensor
Brand: YoLink
SKU: YS7704
Price: 16.99 USD
Availability: InStock

$16.99 ~~$19.99~~ In stock

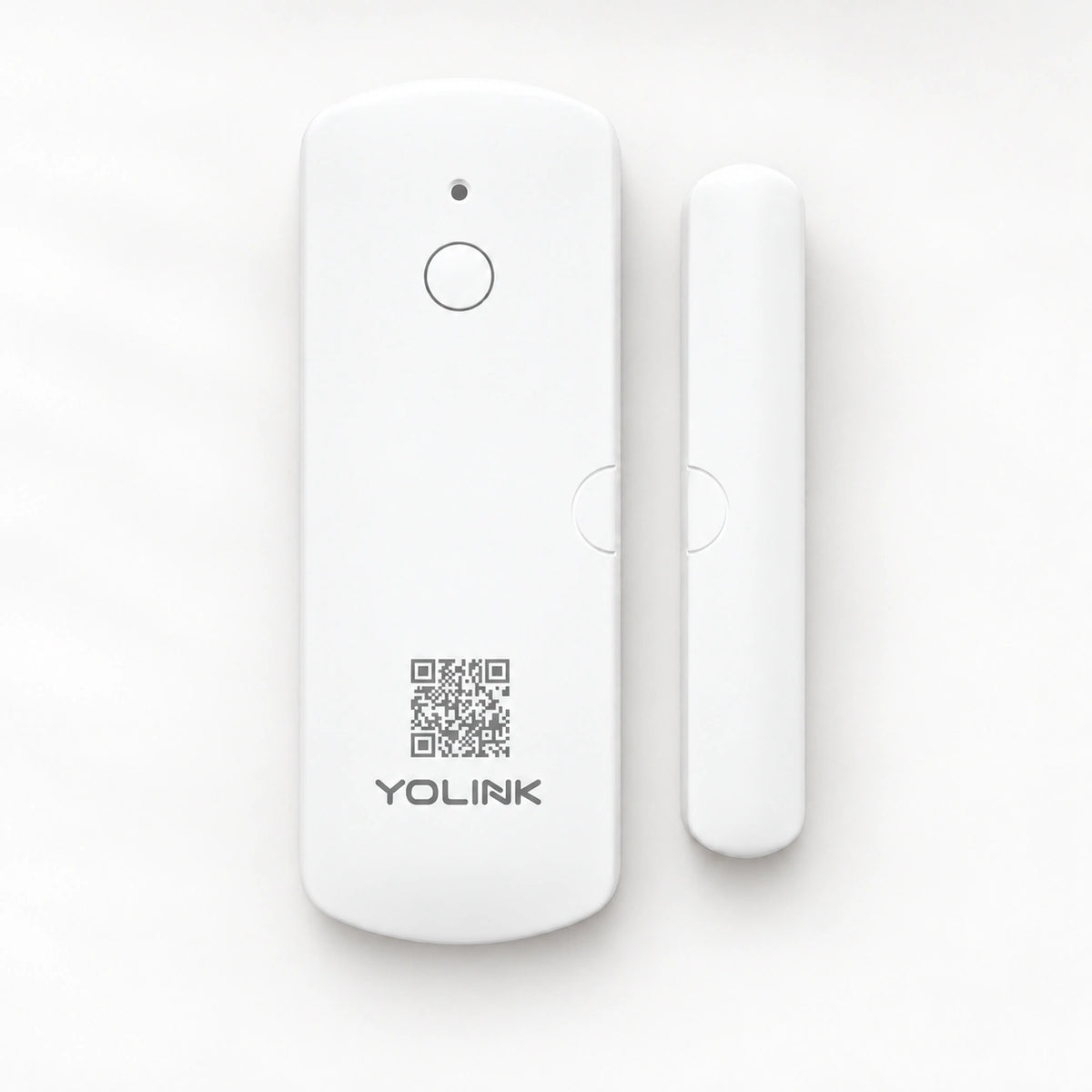

YoLink Door Sensor — product-only photograph on smooth neutral off-white with soft diffused daylight shadows

View larger image

Before you buy

YoLink hub required for app alerts. Sold separately.

Description

Monitor an indoor door or window and receive opening and closing alerts through the YoLink app.

Specifications

Detection: Door or window open / closed
Magnet trigger distance: 0.71~0.89 inch (18~22 mm)
Power: 3 V DC (2 - alkaline non-rechargeable AAA batteries)
Use / installation: Indoor doors and windows
Operating temperature: -4°F-122°F (-20°C-50°C)
Operating humidity: ≤ 95% non-condensing
Dimensions: 3.27 × 1.22 × 0.61 in (83 × 31 × 15.5 mm)
Magnet dimensions: 2.48 × 0.45 × 0.53 in (63 × 11.5 × 13.5 mm)
Installation: Align the sensor and magnet
Processor: Semtech® LoRa® RF Module YL09 microcontroller with 32-Bit RISC processor

Manuals & support

Door Sensor · English · PDFInstallation & user guideOpen manual Setup & troubleshootingBrowse product guidesView support Questions about this product?Contact YoLink supportGet help
