YS7617

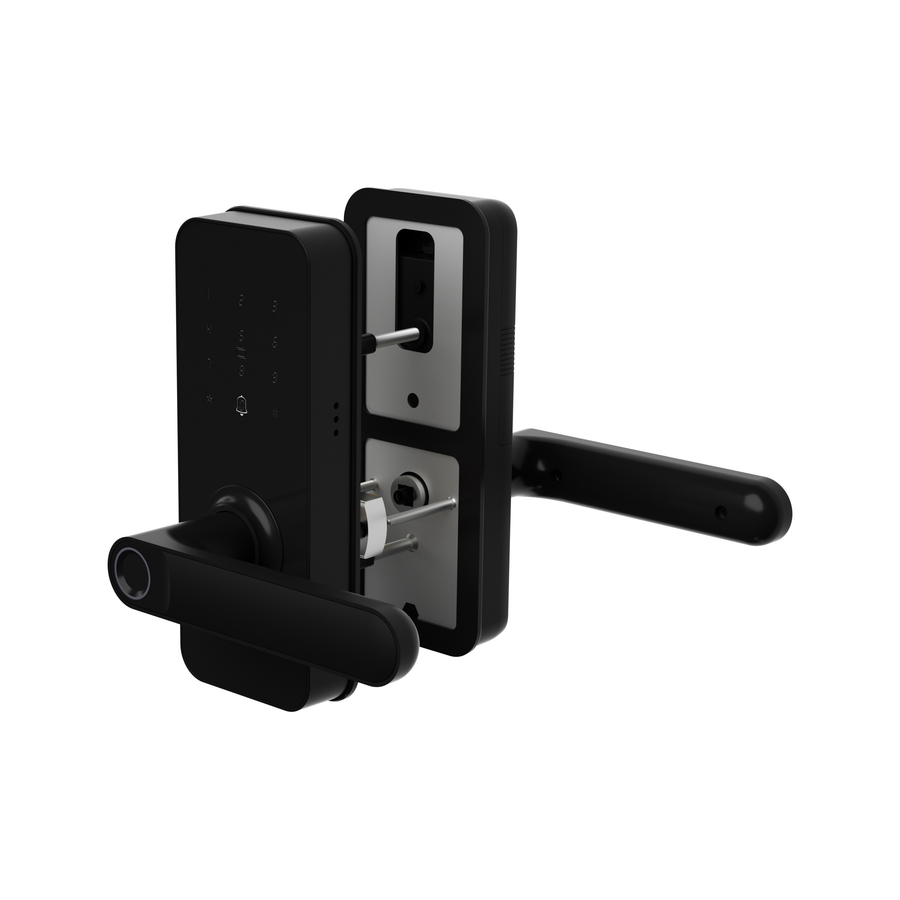

YoLink Smart Lever Lock with Fingerprint
Description
Use a fingerprint, passcode, IC card, compatible YoLink fob or mechanical key with this smart lever lock. A YoLink hub enables app control and user management.
A YoLink hub is needed for app control; sold separately. A compatible fob is needed only for fob access; sold separately.
Match the door swing and reverse the lever if needed; test latch travel after fitting. Use four new non-rechargeable alkaline AA batteries; USB-C provides temporary emergency power. Clean with a dry cloth, without harsh cleaners.
Specifications

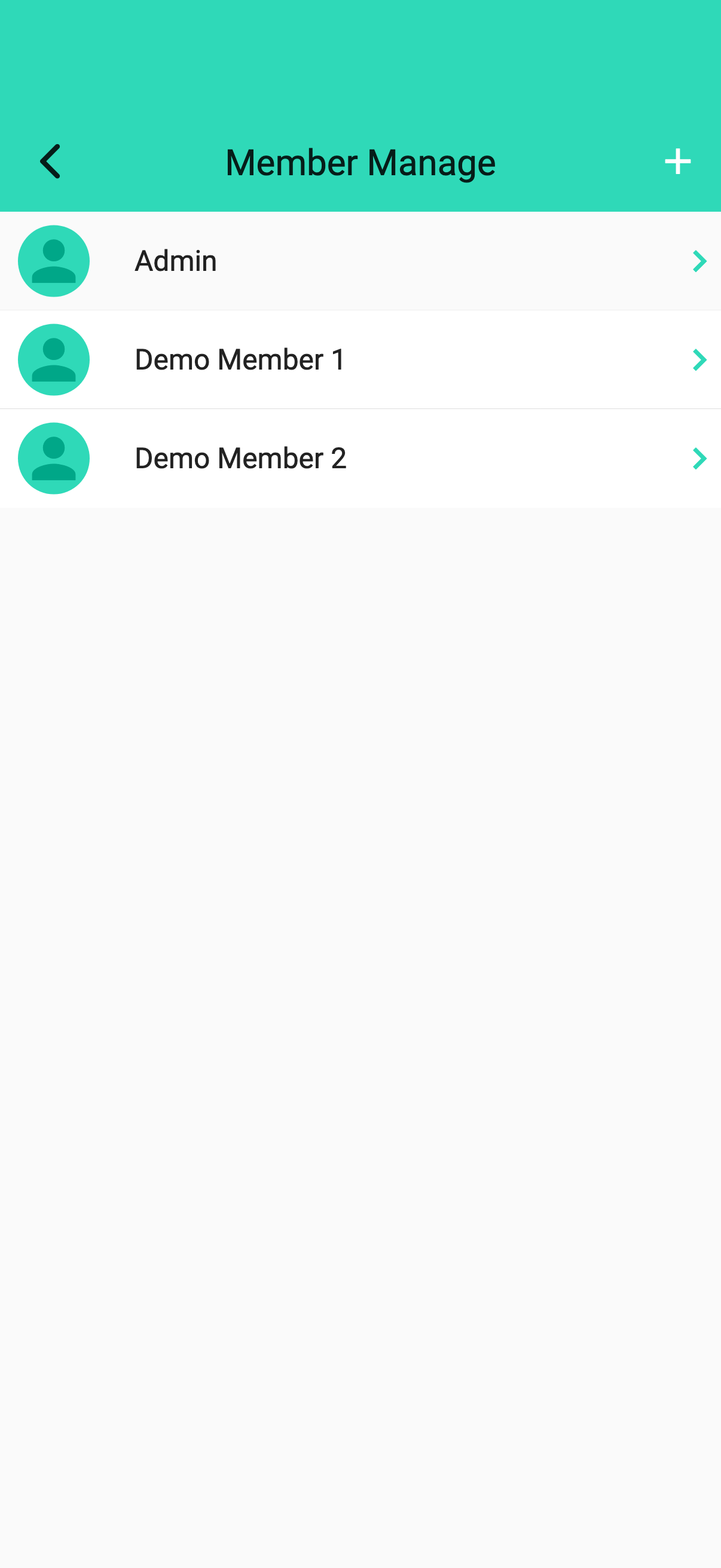

- App user profiles
- 1 administrator plus up to 11 additional members
- Door thickness
- 40–55 mm (1.57–2.16 in)
- Backset
- 60 or 70 mm (2.3 or 2.76 in)
- Door bore diameters
- 55 mm lockset face hole; 25 mm lock-body hole
- Door handing
- Reversible for left/right, inward/outward opening
- Power source
- 4 × non-rechargeable alkaline AA batteries (6 V DC)
- Power input
- USB-C, 5 V DC, 1 A (temporary emergency power)
- Operating temperature
- −4–122°F (−20–50°C)
- Operating humidity
- Up to 95% RH, non-condensing
