Valve Controller 2 & EVO Valve Operator

Sale Off
Valve Controller 2 & EVO Valve Operator
Valve Controller 2 & EVO Valve Operator
Valve Controller 2 & EVO Valve Operator
Valve Controller 2 & EVO Valve Operator
Valve Controller 2 & EVO Valve Operator

DESCRIPTION: The latest addition to our smart wireless valve controller line-up, the Valve Controller 2, with the latest addition to our bolt-on valve operator/manipulators, the EVO Valve Operator. Unique features of the Valve Controller 2 include the ability to be powered by AC power, in addition to, or instead of battery power. The EVO Valve Operator, a bolt-on, "no-plumber-required" operator/manipulator mounts on your existing ball valve using a unique Direct-Drive attachment system.

This product is available in additional starter kits.


REQUIRED ITEMS: A YoLink hub with an internet connection is required for full functionality. See "standalone" below.

$219.59

OFFERS & PROMOTIONS: (None)

  • HUBS
  • STARTER KITS
  • ACCESSORIES
  • SUGGESTED
  • CUSTOMER REVIEWS
$23.59
$24.95
$239.59
$239.59
$9.95
$19.99
$29.99
$19.99
$29.99
$25.99
$25.99
$29.95

Customer Reviews

Based on 7 reviews
86%
(6)
14%
(1)
0%
(0)
0%
(0)
0%
(0)
D
Dan Roman
Yolink water valve

This DYI unit is awesome, easy to install and works great. I had to use custom service to make sure I had the setting set correctly so the unit automatically turned off once the sensor sensed water. Customer service was beyond great. Very kind and knowledgeable. Great product…

R
Ronald Morrell
It was so easy to connect, I didn't know I was done.

Overall, this was easy to set up.
Once I installed the app on my phone, connecting and configuring was handled easily with individualized QR labels on each component.
The directions didn't clearly state it's that easy, and I was already finished. I tried to continue with the next steps. When I gave up and called Customer Service, I got a live person who knew the answers--in less than a minute. Bonus: excellent English (maybe native speaker? )
One hint: My cold water supply valve had a brass finger sticking up to limit the handle's arc of travel (to 90 degrees). It got in the way of attaching the motor to the valve axle. A small cutting wheel on a generic Dremel (Harbor Freight) solved the problem nicely.
I had water damage a couple years ago, and had been anxious about something happening when we were out of town for a weekend. Having verified that a damp finger triggered immediate shut off, I am looking for something else to stress about.

J
Julie Allen
Amazing!

This is brilliant! I am 59 & was able to follow the instructions & set it up by myself. It took me a phone call to the company to get the device to device pairing to work, but now, even without wifi or power, the valve will shut down the water to the house. I have such peace of mind now & highly recommend it!
Julie

B
Brigitte Derome
Yolink for water leak detection in the house

The purchased system consists of one main water valve actuator and 18 water sensors (toilets, sinks, water heater, dishwasher, refrigerator, ...)
Wow! The system is simple and very easy to install.
I tested several water leak sensors and it really works well. The main water valve is closed within seconds. I received a SMS text message notification within seconds. The email took 6 minutes to come in! A bit long, but the SMS was very quick.
Our wifi network is a Google wifi mesh system.
I highly recommend this system.

S
Sherry Erickson
Impressive technology

After damage from two floods in our rentals (and significant expense and time) we decided to install this technology in our personal home and all 6 of our rental townhomes with washing machines on the second floor. I am impressed by how easy it is to setup and install. We had some learning curve but were able to get everything set up and all the water sensors installed in just a few hours. We also were able to do it all without the assistance of an expensive plumbing company. So happy and we will sleep better when we complete all of the installations in our rental homes.

12

INCLUDED

The base package includes these items:

(1) X3 Valve Controller (Model: YS5001)

(1) Lithium battery pre-installed

(1) DN Series motorized valve

(1) Quick Start Guide


REQUIRED

The following items are required for full device functionality:
YoLink Hub or SpeakerHub

Apple or Android phone or tablet


PAYMENT

We accept the following forms of payment for non-commercial purchases:



We accept the following forms of payments for direct, bulk, commercial, B2B purchases:

Check, e-check, bank transfer, Zelle, only.


SHIPPING

The following shipping options are available for domestic (continental U.S. destinations):

USPS Economy, USPS Priority Mail, USPS Priority Mail Express, UPS Ground, UPS 2nd Day Air, UPS Next Day Air, UPS Next Day Air Saver


The following shipping options are available for international destinations:

DHL, UPS


Information regarding importing fees, tariffs, etcetera, can be found on the checkout page.

Questions? Email us at service@yosmart.com or call 831-292-4831



STORE PICK-UP

To arrange for store pick-up, please contact us before placing your order, by emailing us at service@yosmart.com

Our address is:
15375 Barranca Parkway
Suite J-107
Irvine, California 92614

Our phone number is:
(949) 825-5958

You are in advanced mode.

You can turn it off in left sidebar. To use advanced options, you will need to enter your own Google Maps API Key.

Get Google API Key

RETURNS & EXCHANGES

We are not happy until you are! Your purchase is protected by a 60 day returns and exchanges policy. Terms: RETURNS & EXCHANGES POLICY



WARRANTY

https://gem-3910432.netThe X3 Valve Controller, and the DN Series motorized valve, when sold with the X3 controller, carry a 2 year manufacturer's warrany. Review and download the full warranty terms: WARRANTY POLICY PAGE


  • INCLUDED
  • REQUIRED
  • PAYMENT
  • SHIPPING
  • PICK-UP
  • RETURNS
  • WARRANTY
  • LIMITATIONS

The base package includes these items:

(1) Valve Controller 2  (Model: YS5003)

(4) AA Batteries

(1) Quick Start Guide

(1) EVO Valve Operator

(1) Quick Start Guide



The following items are required for full device functionality:
YoLink Hub or SpeakerHub

Apple or Android phone or tablet


We accept the following forms of payment for non-commercial purchases:



We accept the following forms of payments for direct, bulk, commercial, B2B purchases:

Check, e-check, bank transfer, Zelle, only.



The following shipping options are available for domestic (continental U.S. destinations):

USPS Economy, USPS Priority Mail, USPS Priority Mail Express, UPS Ground, UPS 2nd Day Air, UPS Next Day Air, UPS Next Day Air Saver


The following shipping options are available for international destinations:

DHL, UPS


Information regarding importing fees, tariffs, etcetera, can be found on the checkout page.

Questions? Email us at service@yosmart.com or call 831-292-4831



To arrange for store pick-up, please contact us before placing your order, by emailing us at service@yosmart.com

Our address is:
25172 Arctic Ocean Drive
Suite 106
Lake Forest, CA 92630

Our phone number is:
(949) 825-5958

You are in advanced mode.

You can turn it off in left sidebar. To use advanced options, you will need to enter your own Google Maps API Key.

Get Google API Key

We are not happy until you are! Your purchase is protected by a 60 day returns and exchanges policy. Terms: RETURNS & EXCHANGES POLICY



Mechanical products like the Bulldog Valve Robot carry a 1-year warranty, while the Valve Controller 2 carries a 2 year manufacturer's warranty. Review and download the full warranty terms: WARRANTY POLICY PAGE

There is no published maximum number of devices that can be added to one hub or one app!

YoLink devices are inter-compatible with all YoLink hubs and vice versa.

INCLUDED

The base package includes these items:

(1) Valve Controller 2 (Model: YS5003)

(4) AA batteries, pre-installed

(1) Quick Start Guide

(1) EVO Valve Operator

(1) Quick Start Guide

REQUIRED

The following items are required for full device functionality:
YoLink Hub or SpeakerHub

Apple or Android phone or tablet


PAYMENT

We accept the following forms of payment for non-commercial purchases:



We accept the following forms of payments for direct, bulk, commercial, B2B purchases:

Check, e-check, bank transfer, Zelle, only.


SHIPPING

The following shipping options are available for domestic (continental U.S. destinations):

USPS Economy, USPS Priority Mail, USPS Priority Mail Express, UPS Ground, UPS 2nd Day Air, UPS Next Day Air, UPS Next Day Air Saver


The following shipping options are available for international destinations:

DHL, UPS


Information regarding importing fees, tariffs, etcetera, can be found on the checkout page.

Questions? Email us at service@yosmart.com or call 831-292-4831



STORE PICK-UP

To arrange for store pick-up, please contact us before placing your order, by emailing us at service@yosmart.com

Our address is:
15375 Barranca Parkway
Suite J-107
Irvine, California 92614

Our phone number is:
(949) 825-5958

You are in advanced mode.

You can turn it off in left sidebar. To use advanced options, you will need to enter your own Google Maps API Key.

Get Google API Key

RETURNS & EXCHANGES

We are not happy until you are! Your purchase is protected by a 60 day returns and exchanges policy. Terms: RETURNS & EXCHANGES POLICY



WARRANTY

Mechanical products like the EVO Valve Operator carry a 1-year warranty, while most other products carry a 2-year warranty. Review and download the full warranty terms:  WARRANTY POLICY PAGE



LIMITATIONS

There is no published maximum number of devices that can be added to one hub or one app!

YoLink devices are inter-compatible with all YoLink hubs and vice versa.

INCLUDED WITH YOUR PURCHASE:

Free U.S. Shipping,

Orders $50 & Up

Hassle-free Returns & Exchanges


1-Year Mechanical

2-Year Electrical

Warranty


Do-It-Yourself

Installation

U.S. Phone Support Available

100% Satisfaction

Goal

THIS PRODUCT IS COMPATIBLE WITH:

YoLink App


Alexa


Google


IFTTT



Home Assistant



Raedius Web Console


Cloud API

OVERVIEW:

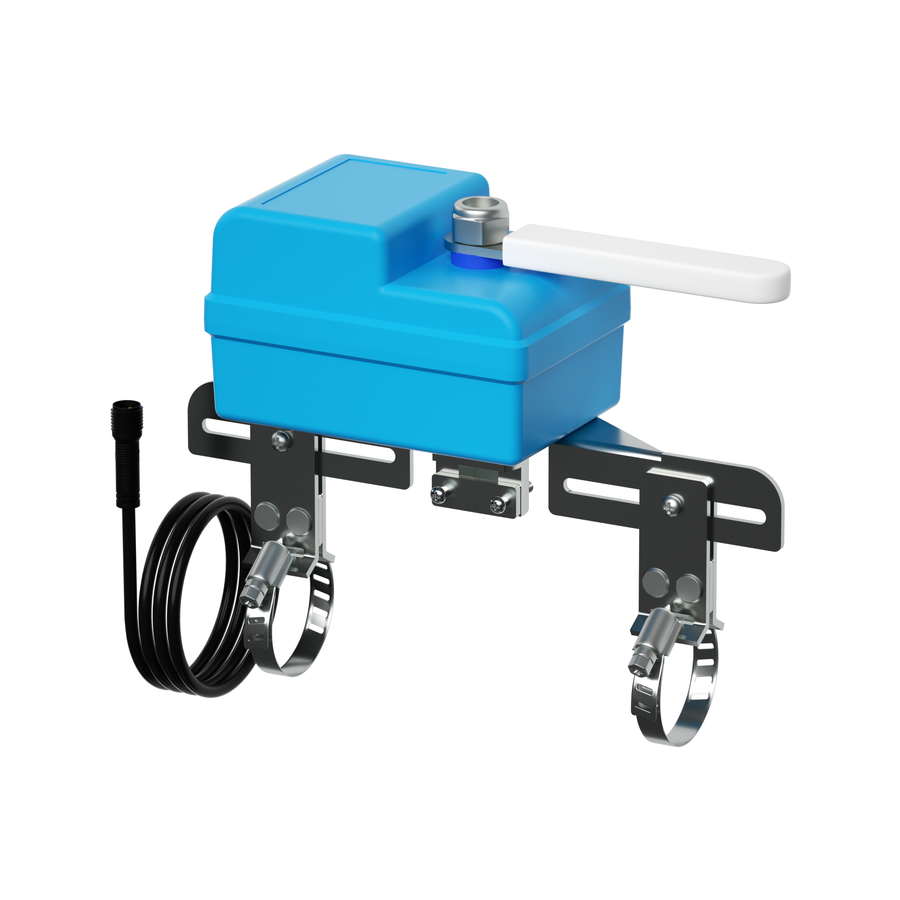

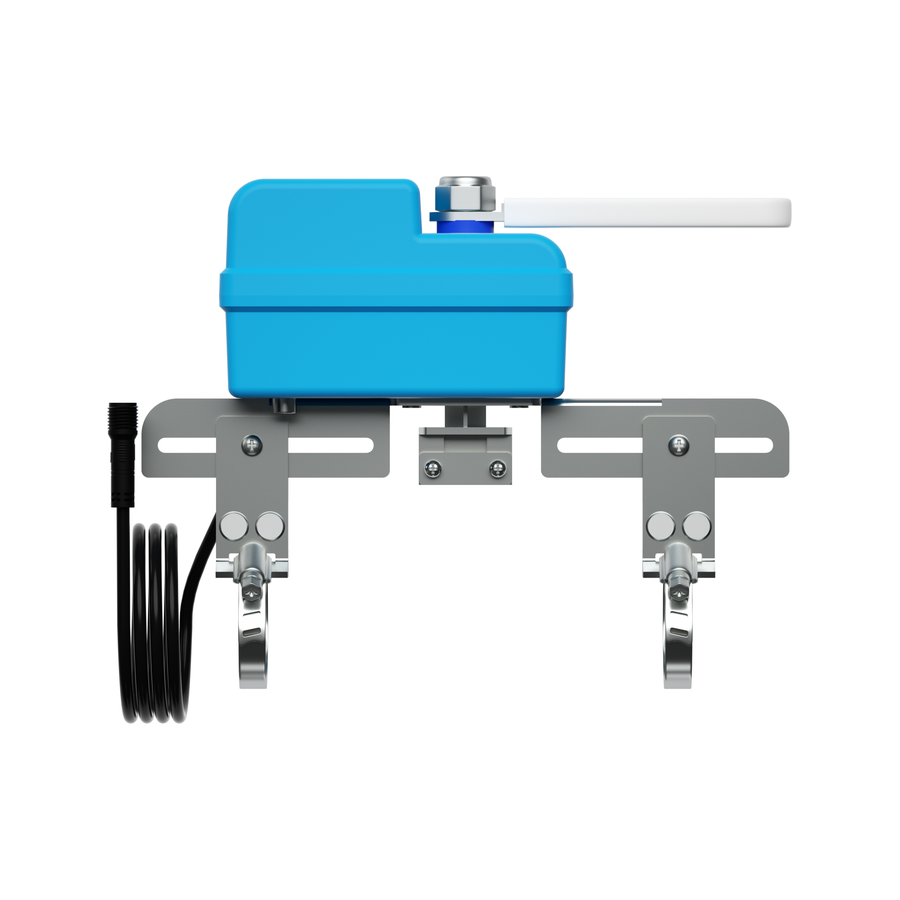

EVO Valve Operator

Model YS5004



  • "Bolt-on" 12VDC motorized valve operator/manipulator
  • Innovative Direct-Drive attachment system requires less torque to close the valve, ensuring 100% closure
  • No-plumber-required, do-it-yourself installation
  • No pipe cutting; attaches to existing ball valve
  • Installs in around 15 minutes with a Phillips screwdriver
  • Recommended ball valve sizes: 1/2", 3/4", 1", 1-1/4", 1-1/2", 2"
  • Outdoor-rated, IP65 (Overhead cover recommended)
  • Manual control (depress clutch pin and turn handle)
  • See the product datasheet for full details

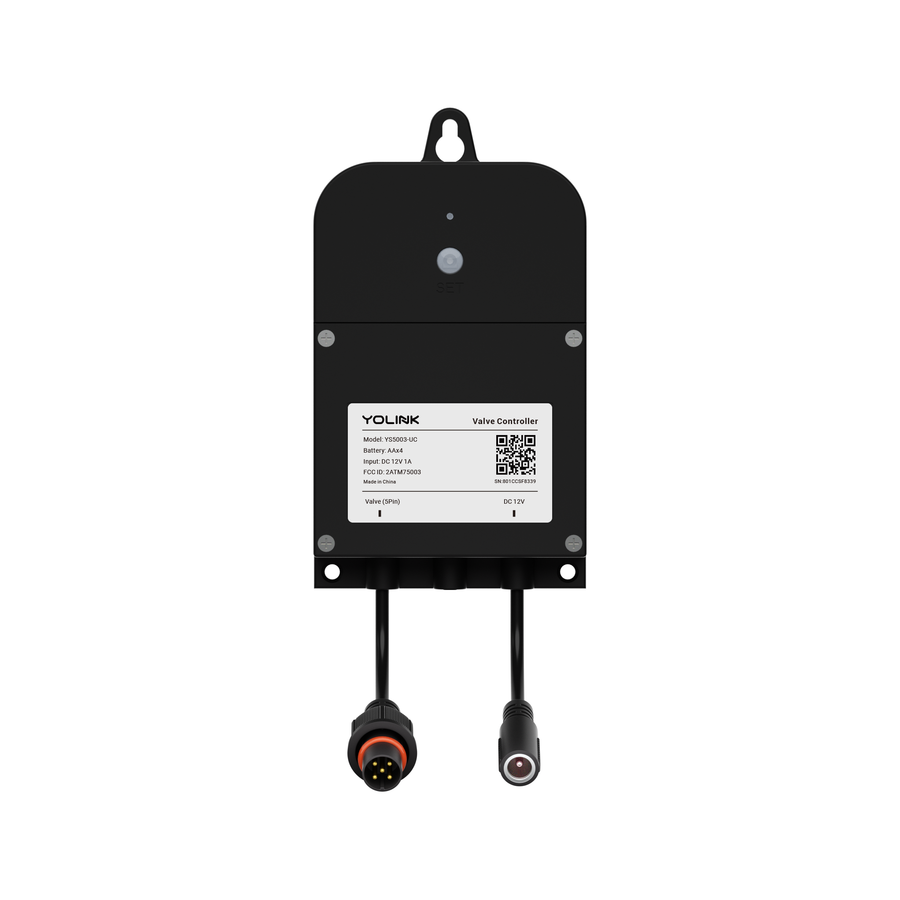

Valve Controller 2

Model YS5003



  • Smart wireless valve controller
  • Battery-powered (4 AA batteries, included)
  • Optional AC power via included plug-in adapter
  • Valve position input (positive open/shut feedback)
  • Outdoor-rated, IP63
  • Can be remotely-installed from the valve device, with optional extension cables
  • Device-to-device pairing
  • LoRa-based extreme long range wireless
  • Up to 1/4 mile, open air range
  • Extreme low-power consumption
  • 2+ years between battery changes
  • 2 year manufacturer's warranty
  • See the product datasheet for full details

Valve Controller 2

Model YS5003



  • Smart wireless valve controller
  • Battery-powered (4 AA batteries, included)
  • Optional AC power via included plug-in adapter
  • Valve position input (positive open/shut feedback)
  • Outdoor-rated, IP63
  • Can be remotely-installed from the valve device, with optional extension cables
  • Device-to-device pairing
  • LoRa-based extreme long range wireless
  • Up to 1/4 mile, open air range
  • Extreme low-power consumption
  • 2+ years between battery changes
  • 2 year manufacturer's warranty
  • See the product data sheet for full details

Bulldog Valve Robot

Model BDOG



  • "Bolt-on" 12VDC motorized valve operator/manipulator
  • No-plumber-required, do-it-yourself installation
  • No pipe cutting; attaches to existing ball valve
  • Recommended ball valve sizes: 1/2", 3/4", 1"
  • Ball valve must be in good working order
  • Outdoor-rated, IP65 (Overhead cover recommended)
  • Manual control (depress clutch pin and turn handle)
  • 2 year manufacturer's warranty (when purchased with X3 Valve Controller)
  • See the product data sheet for full details

INTRO / FEATURES & BENEFITS:

  • INTRODUCTION
  • FEATURES
  • BENEFITS
  • STANDALONE

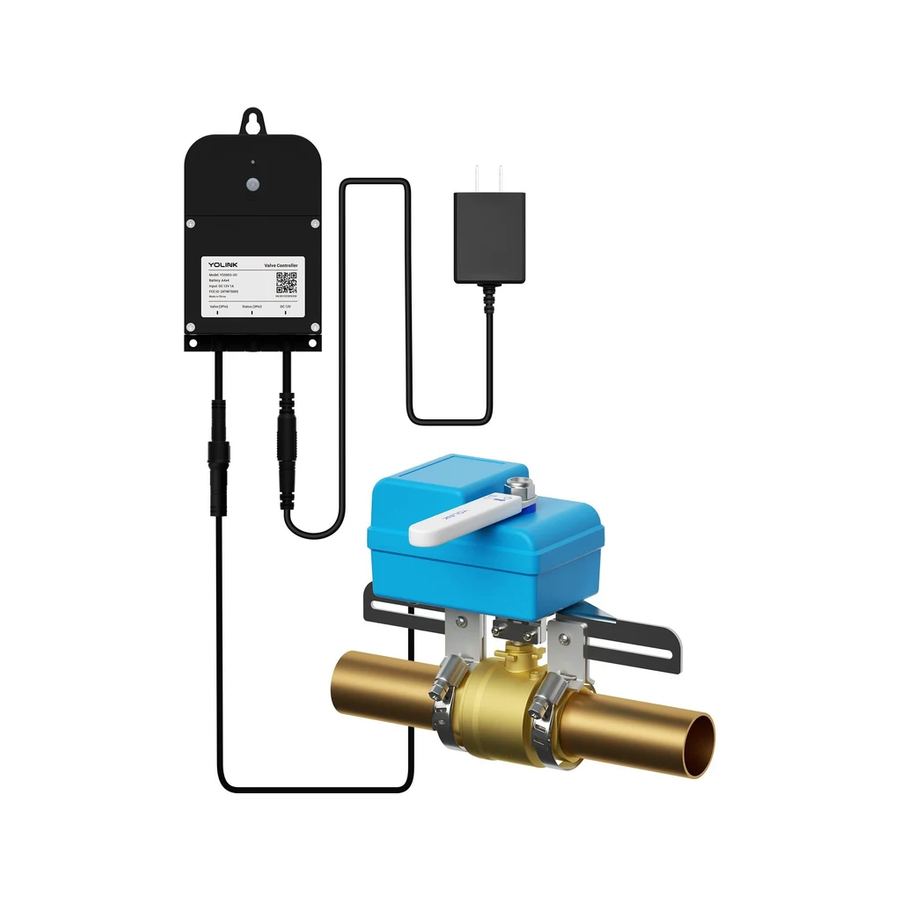

The Valve Controller 2: features include an outdoor-rated controller with 2+ years between battery changes (batteries are included). New features for the Valve Controller 2 include multiple power options. Using the included AC-to-12VDC power adapter, plug this in for normal operation on AC power, with battery "back-up", or use the adapter, only, or do not use the adapter for standard battery-powered (only) operation. (For even longer battery life, check out the X3 Valve Controller)

With the EVO Valve Operator. The EVO Valve Operator is a "bolt-on" ball valve operator/manipulator with a new and innovative attachment system. Rather than a "push/pull" approach to moving the ball valve lever, the EVO replaces the handle of the ball valve, and attaches directly to the ball valve shaft. This significantly improves efficiency, and overcomes most issues (related to the valve condition) that the Bulldog Valve Operator might be challenged by. As the EVO and ball valve essentially become one mechanism, this eliminates most of the issues that push/pull mechanisms have, that require specific adjustments to achieve ideal leverage, etcetera, specifically with older, stiffer, and/or larger valves. Installation is simple, and takes 15 minutes or less using only a Phillips screwdriver.

The controller and EVO work in conjunction to provide smart wireless valve control, with YoLink's LoRa-based extreme long range wireless technology.

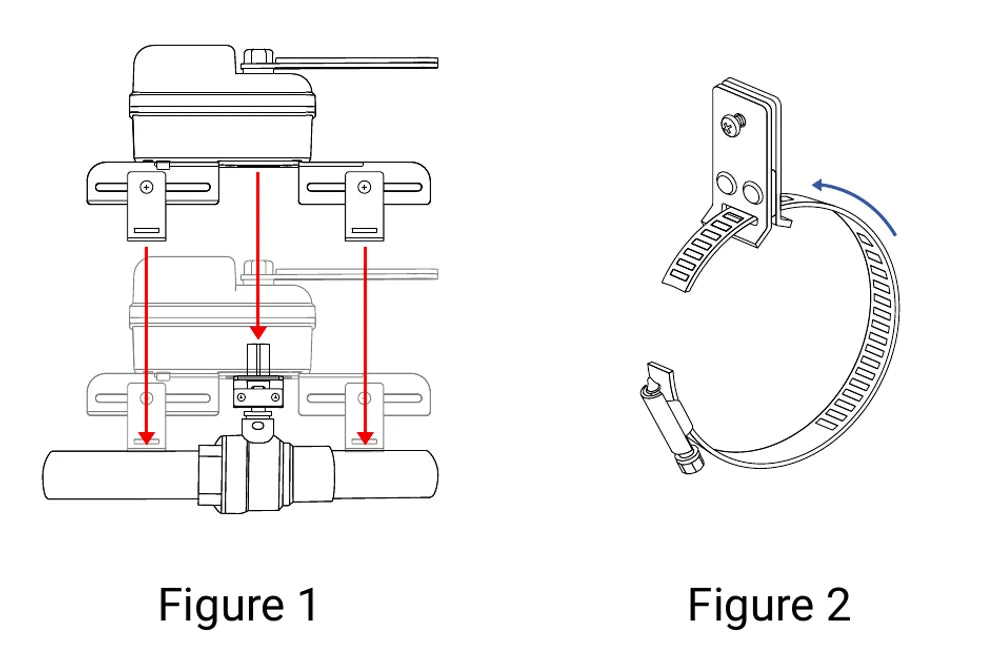

  • Simple Do-It-Yourself, no-plumber-required, installation. The EVO installs in about 15 minutes, with just a Phillips screwdriver. (The valve controller installation requires additional tools and hardware for wall-mounted installation)
  • Wireless operation; no 120V outlet or additional wiring required
  • LoRa long-range/low-power technology offers 2+ years battery life, compared to 1+ year for other brands
  • Alexa, Google, voice assistant, Home Assistant and IFTTT integration
  • YoLink Control D2D device-to-device pairing allows for the Smart Motorized Valve to be directly controlled by YoLink water sensors or other devices, without an internet connection, and without power ("No WiFi, No Internet, No Power - No Problem!")
  • S.D.I.M - Smart Device Integrity Monitoring means your smart device is supervised 24/7 for communication and device health. Should your device fail to communicate or have a device health issue, you can be notified (per your alarm strategy settings). Each device has a unique identification number and it is individually monitored by the YoLink cloud server, 24/7, continuously
  • YoLink’s industry-leading long range communication (up to 1/4 mile, open air!) allows for operation in larger homes and in areas difficult for other wireless systems, such as basements, separate garages/structures, and even outside your home
Add smart control, including remote manual control, schedule control, and automation based on interaction with other smart devices (such as YoLink smart water leak sensors). Additionally, the valve can be controlled by third-party applications like IFTTT, Home Assistant, Google and Alexa (including voice commands, like "Alexa, turn off the water")

Avoid the expense, inconvenience and mess associated with the installation of non-wireless valve controllers.

Enjoy functionality even during a power outage. Control-D2D paired devices will perform their paired function automatically, without an internet connection, without the app, and without AC power (in the case of battery-powered or battery-backed-up devices - an internet connection is required for full functionality and for the app to work.)

To enjoy all the features of your smart valve controller, it requires a connection to a YoLink hub (with an internet connection). While you can utilize the valve controller in a "standalone" mode, and use Control-D2D (device-to-device pairing) to pair your valve controller directly to water leak sensors and/or to a YoLink fob, these are intended to be "back-up" or supplemental configurations.

The app will not function without a hub, and without a hub, the valve controller can not report or inform you of device health issues, such as low batteries.


SPECIFICATIONS:

  • SPECIFICATIONS
  • DATA SHEETS

Valve Controller Specs:

Controller:

Semtech® LoRa® RF Module YL09 microcontroller with 32-Bit RISC processor

User Visual Indicators:

Multi-color Status LED

User Control Interface:

SET Button

Power (Battery):

One ES-341550/W 3.6V lithium battery (replaceable)

Standby Current Draw:

.9 mA on batteries, 1.5 mA on external power

Current Draw (Operating):

28.6 mA + Device Current Draw

Power Supply Amperage:

1 Amp

IP Rating:

IP67

Dimensions, Imperial (Length x Width x Depth):

4.49 x 3.95 x 1.5 inches

Dimensions, Metric (Length x Width x Depth):

113.91 x 100.37 x 38.19 mm

Operating Temperature Range:

-4°F to 140°F (-20°C to 60°C)

EVO Valve Operator:

Visual Valve Position Indicator:

Yes (handle position)

Cable Length:

33" (84 centimeters)

Voltage:

12 VDC

Standby Current Draw:

0

Maximum Current Draw:

500 Ma

Open/Close Duration:

<18 Seconds

IP Rating:

IP65

Environmental Temperature Range:

32 to 140°F (-15° to 60°C)

X3 Valve Controller Datasheet Pg. 1


X3 Valve Controller Datasheet Pg. 2


ADDITIONAL RESOURCES:

Additional resources, including applications,

videos, comparison charts, installation tips, customer testimonials, and more!


Overview of the

YoLink Smart Water Solutions

product line, and the

Water Leak Protection System
