BRAND:  yolink        MODEL: YS5001+BDOG

Sale Off
X3 Commercial-Grade Wireless Valve Controller & Bulldog Valve Robot Water Leak Detection & Shut-off Kit  HUB REQUIRED - YoLink
X3 Commercial-Grade Wireless Valve Controller & Bulldog Valve Robot Water Leak Detection & Shut-off Kit  HUB REQUIRED - YoLink

description:

Our X3 commercial line wireless Valve Controller, and Bulldog Valve Robot. (This product is also available in a starter kit)


 price:

$298.95


This product requires a YoLink Hub or SpeakerHub!

YOUR PURCHASE INCLUDES:

Free U.S. Shipping, Orders $50 & Up

Hassle-Free 60 Day Returns

2-Year Warranty

Do-It-Yourself Installation

U.S. Phone Support Available

100% Satisfaction Goal





THIS PRODUCT IS COMPATIBLE WITH:

Alexa

IFTTT

Home Assistant

Google

Raedius Web Console



  • INTRO
  • APPLICATIONS
  • SPECS
  • REQUIREMENTS
  • DOCS
  • VIDEOS
  • FAQs
  • MORE
  • REVIEWS
Introduction:
"X3" (commercial grade) smart wireless outdoor-rated valve controller and Bulldog Valve Robot
Features:
  • Controller does not require external power - no AC, plug/receptacle, wiring, required.
  • Battery-powered (10-year lithium battery, included)
  • LoRa long-range/low-power technology offers 2+ years battery life, compared to 1+ year for other brands
  • YoLink’s industry-leading long range communication allows for operation in larger homes and in areas difficult for other wireless systems, such as basements, separate garages/structures, and even outside your home
  • YoLink Control allows for the Water Valve Controller to be controlled directly by YoLink water leak sensors, without an internet connection
  • Remote status and control with the convenient YoLink app
  • Local (electronic) manual operation via the SET button on the controller
  • Manual (mechanical) operation of the Bulldog Valve Robot
  • Amazon/Google Assistant, Home Assistant and IFTTT integration
  • 2 Year Warranty on the controller and Bulldog Valve Robot (Typically, mechanical products carry a 1 year warranty, unless purchased as part of an X3 controller kit)
What's in the box?
(1) X3 Valve Controller
(1) Lithium Battery (Pre-installed)
(1) Bulldog Valve Robot
(1) Quick Start Guide
Warranty:
Bulldog Valve Robot: Two Years
X3 Valve Controller: Two Years
Applications:
  • General water control
  • Remotely turn the water on or off at your condo, rental property, summer/winter home while not in use
  • Prevent unauthorized use, by turning off water lines
  • Use the YoLink Water Leak Sensor to automatically shut off the water when a leak is detected, preventing costly damages (Water Leak Sensor sold separately)
  • Shut off water to your lawn sprinkler system during the winter months, preventing water from freezing in the pipes
  • Automate pet and livestock watering, with remote control and preset schedules (consider pairing your water valve controller with the Water Leak Sensor 3 with water level detection)
Specifications:

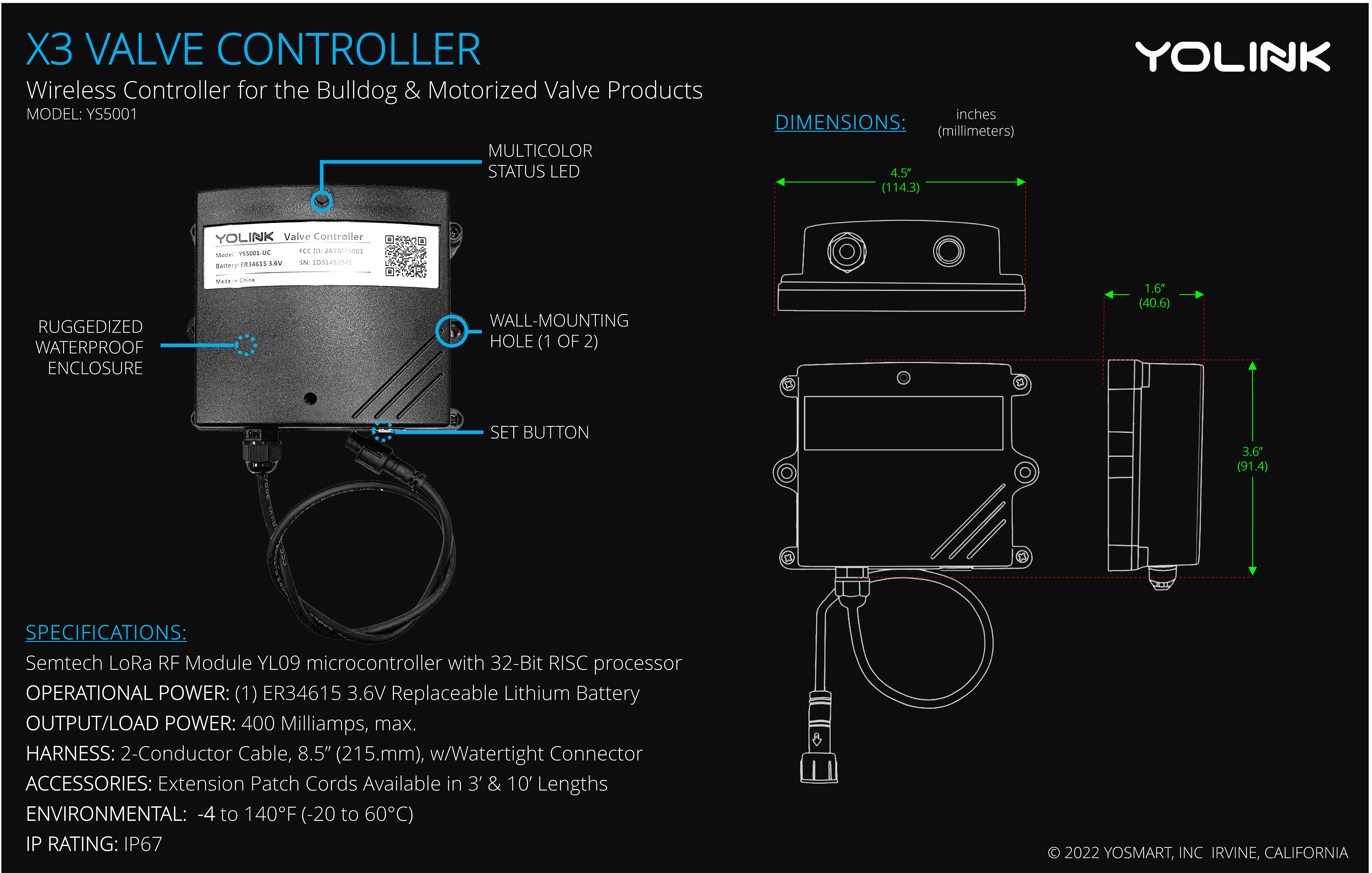

X3 VALVE CONTROLLER:

Controller: Semtech® LoRa® RF Module YL09 microcontroller with 32-Bit RISC processor

Power: One ER34615 3.6V lithium battery (replaceable)

IP Rating: IP67

Environmental:

   Environment Temperature Range: -4°F – 122°F (-20°C – 50°C)



BULLDOG VALVE ROBOT:

Voltage: DC 12V

High Torque Geared Valve Motor

Cable Length: 28" (700mm)

Torque: ~ 11lbf (~15Nm)

Operation Duration: ~ 18 seconds

Supports Valve Sizes: 1/2", 3/4", 1", 1.25" and 1.5" Ball Valves (special order for 2")

Environmental:

   Environment Temperature Range: 32° to 122°F (0° to 50°C)

Requirements:
  • YoLink Hub with an internet connection (wired Ethernet or 2.4GHz Wi-Fi). Refer to the Hub user guide for additional information
  • Smartphone or tablet running iOS 9 or higher, Android 4.4 or higher
  • Tools Required: Phillips screwdriver (for Bulldog), and optionally: screws, anchors and a means of installing them
  • Installation Difficulty Level: Moderate easy (some mechanical aptitude is beneficial)

Document

File Type

Language

PDF

English-US

PNG

English-US

Videos:
Video
Video
Video
Video
FAQs:
Q:  Can I manually operate the valve?  A: Yes. The Bulldog has a clutch release pin, it's on the underside of the main assembly. Depress it and you can move the valve handle.

Q:  Are the batteries replaceable?  A: Yes. The controller is powered by one replaceable ER34615 3.6V lithium battery.

Q: Is this weather-resistant, can it be used outside?  A: The X3 Valve Controller is IP67 rated and can be used outdoors. The Bulldog Valve Robot can be used outdoors but should have protection from the weather, in the form of a rain hood or enclosure.
