YS4004

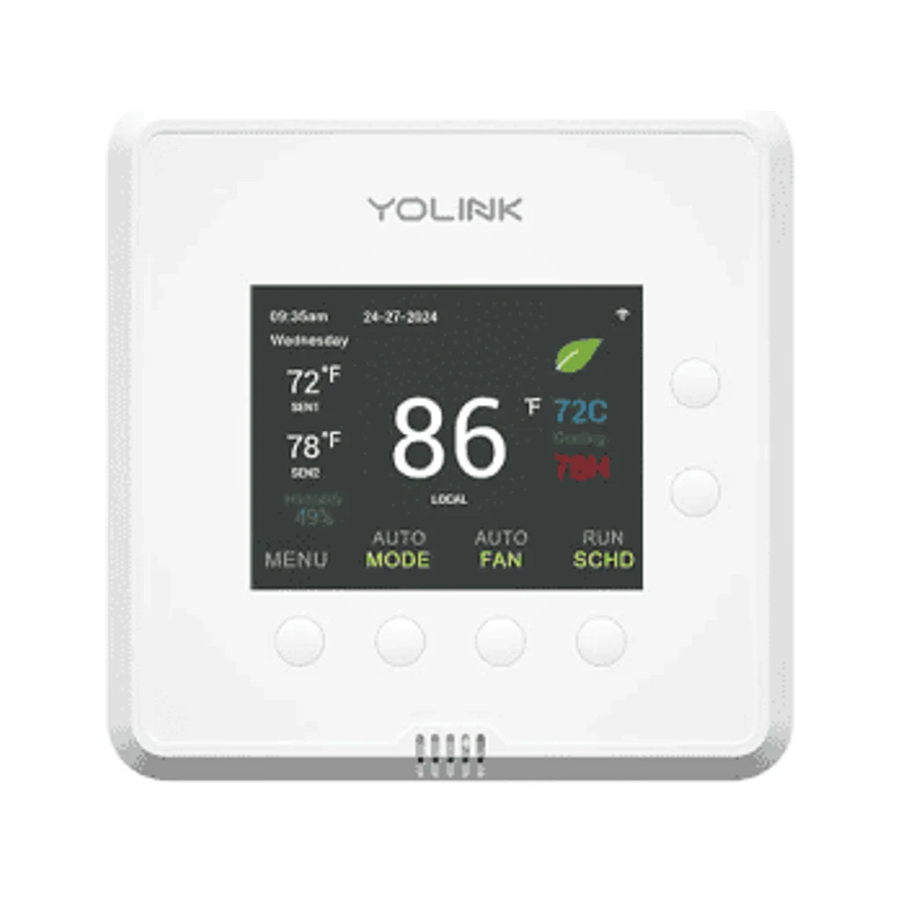

YoLink Thermostat 2, Dual-Stage Heat & Cool
Set temperatures and schedules for a compatible heating and cooling system from the wall or the YoLink app.
Requires a C-wire and a compatible 24 V AC HVAC system. Not for millivolt or 120/240 V systems. A YoLink hub is required for remote app access; the thermostat does not connect directly to Wi-Fi.
Order notes & regional requests
Add special instructions in Order notes before checkout. Requests require confirmation from YoLink. Accelerated checkout and Buy with Prime may skip the cart and its notes.
Product details
Technical specifications
- Compatible system
- Common 2-stage 24 V AC heating and cooling systems
- Wiring
- C-wire required; a C-wire or adapter must be installed if absent
- Not compatible
- Millivolt or 120/240 V systems
- App connection
- YoLink hub required; no direct Wi-Fi connection
- Power
- 24 V AC/500 mA
- Temperature Range (Scheduled)
- 41°F-95°F, (5°C-35°C)
- Operating temperature
- -4°F-122°F (-20°C-50°C)
- Dimensions
- 115 × 115 × 22.2 mm (L x W x D)
- ECO Setting Range
- 2°F-9°F, (1°C-5°C)
- Calibration Range
- -9°F-9°F, (-5°C-5°C)
- Processor
- Semtech® LoRa® RF Module YL09V2 microcontroller with 32-Bit RISC processor
More product & safety information
The thermostat supports dual-stage heating and cooling and compatible heat-pump setups. Verify equipment wiring against the installation guide.
Up to two compatible YS8007 temperature and humidity sensors can be selected as the temperature source. Auxiliary heat and demand-response functions can also be configured.
Manuals & setup
Instructions for the model in this product.
