YS7717
YoLink Solar Door Sensor
A YoLink hub is required for remote app access and is sold separately. Position the solar panel where it receives light, and allow for gate movement when aligning the magnet.
Description
Monitor whether an outdoor gate or door is open or closed with a solar-powered sensor.
Use the sensor and magnet to monitor an outdoor gate or door. A connected YoLink hub provides remote app access; the sensor does not connect directly to Wi-Fi.

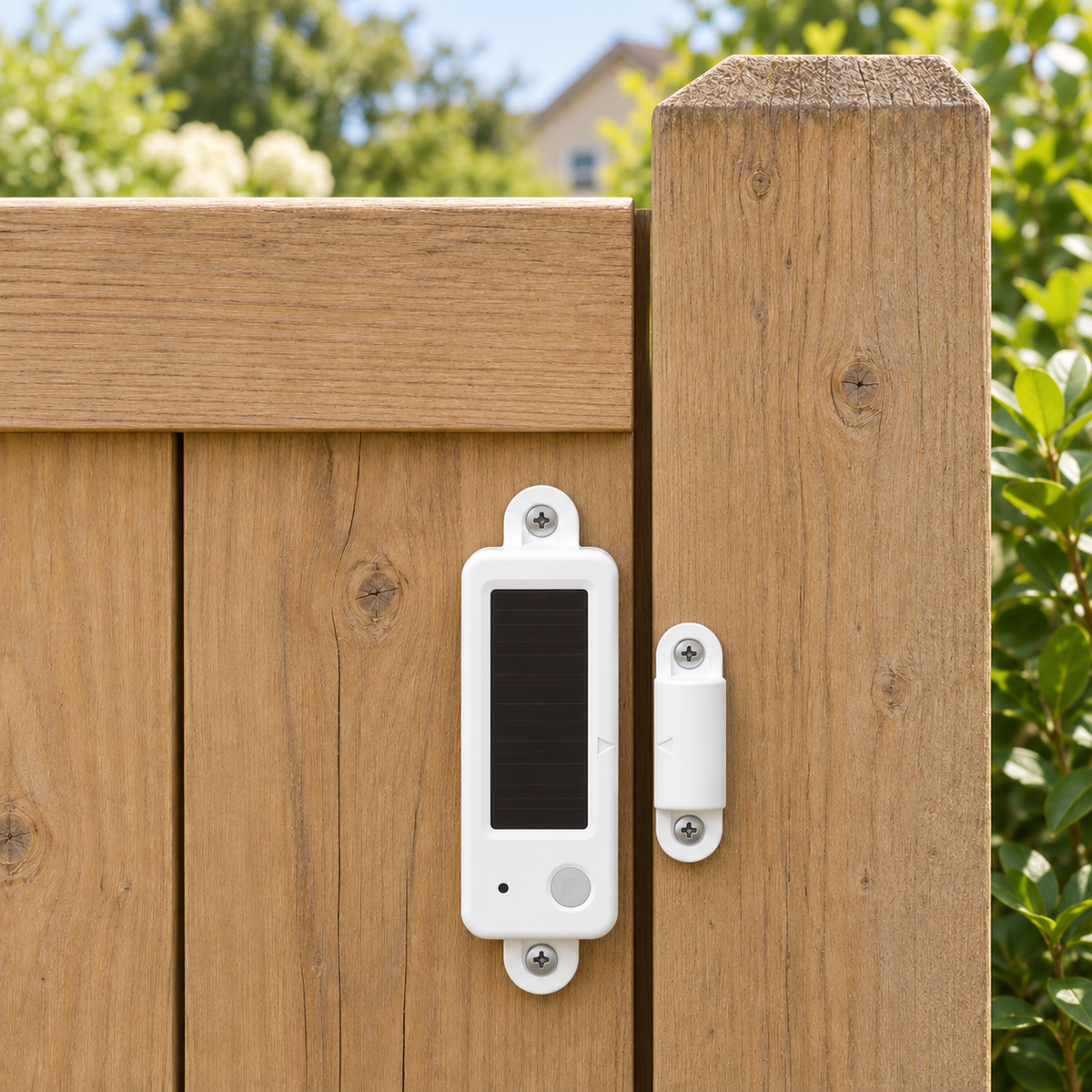

Mount the sensor on the private side of the gate with light reaching its solar panel. Leave clearance between sensor and magnet, and avoid alignment at the edge of the detection range so movement does not cause false-open alerts.
Specifications
- Detects
- Open or closed gate or door
- Power
- Hybrid Layer Capacitor + Solar Charging
- Operating temperature
- −30–60°C (−22–140°F)
- Use / installation
- Outdoor Use Only
- Ingress rating
- IP67; install away from low areas where standing water could submerge the sensor
- Operating humidity
- 0% - 100%RH
- Dimensions
- Solar Door Sensor: 102 × 30.9 × 19.2 mm Magnet: 46.8 × 15 × 13.8 mm (L x W x D)
- Alignment
- Allow for gate movement; avoid the detection-range limit
- Current draw
- ≤ 135 mA (operating), ≤ 20uA(standby)
