YS7104
YoLink Outdoor Relay & Alarm Controller Only
Order notes & regional requests
Add special instructions in Order notes before checkout. Requests require confirmation from YoLink. Accelerated checkout and Buy with Prime may skip the cart and its notes.
Product details
Technical specifications
- Power
- 6 V DC (four alkaline non-rechargeable AA batteries)
- Operating humidity
- 0–95% non-condensing
- Operating temperature (alkaline batteries)
- −10–50°C (14–122°F)
- Operating temperature (non-rechargeable lithium batteries)
- −20–50°C (−4–122°F)
- Ingress rating
- IP63 (Rainproof)
- DC output
- 12 V DC; up to 400 mA
- Output Voltage
- 12 V DC
- Output Current
- ≤ 400 mA (Resistive)
- Current draw
- ≤ 160 mA (on, without connecting with the siren horn), ≤ 90uA (standby)
More product & safety information

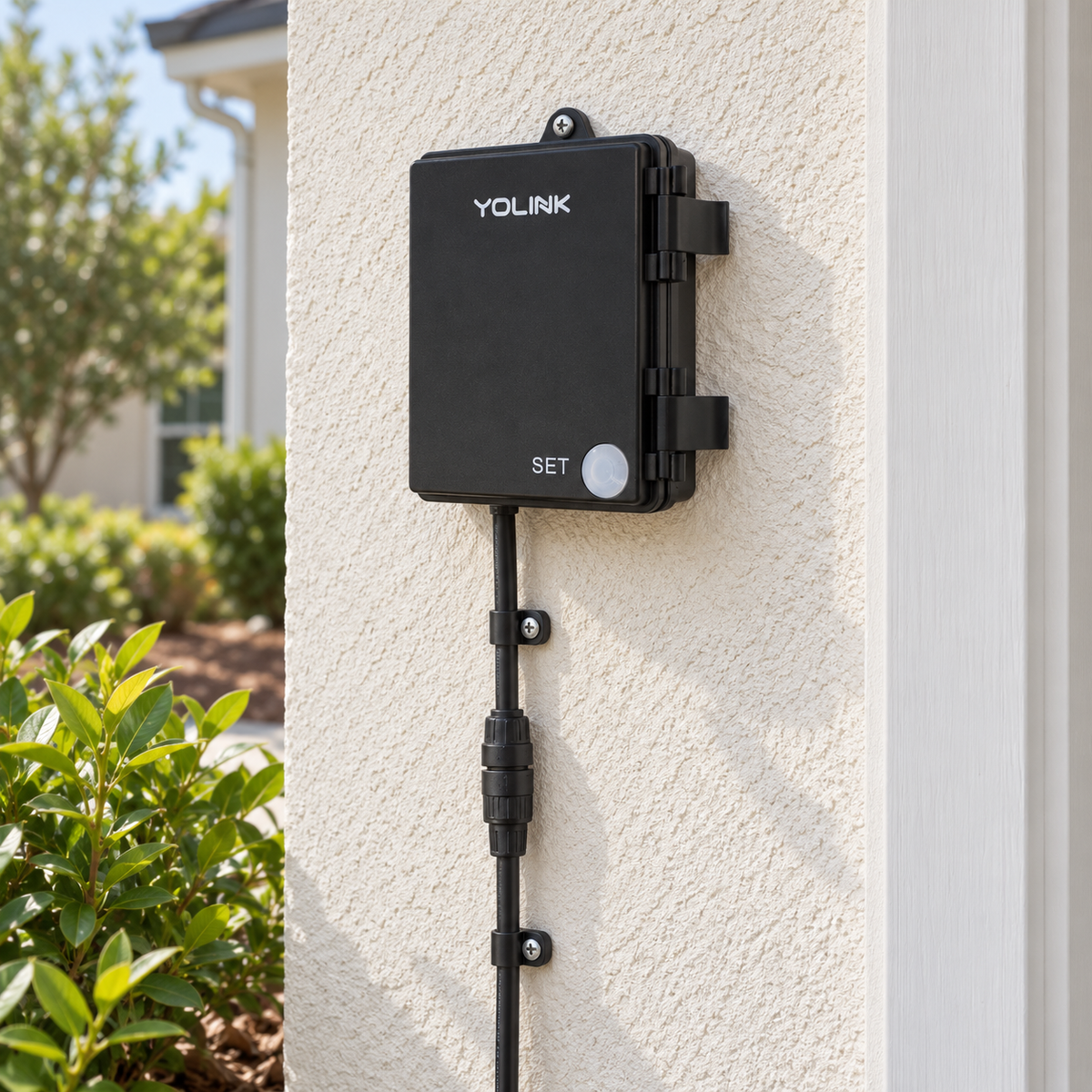

The outdoor controller operates a compatible external alarm. Confirm the siren’s voltage and current requirements before connecting it, and position the sounder where the alarm can be heard safely.

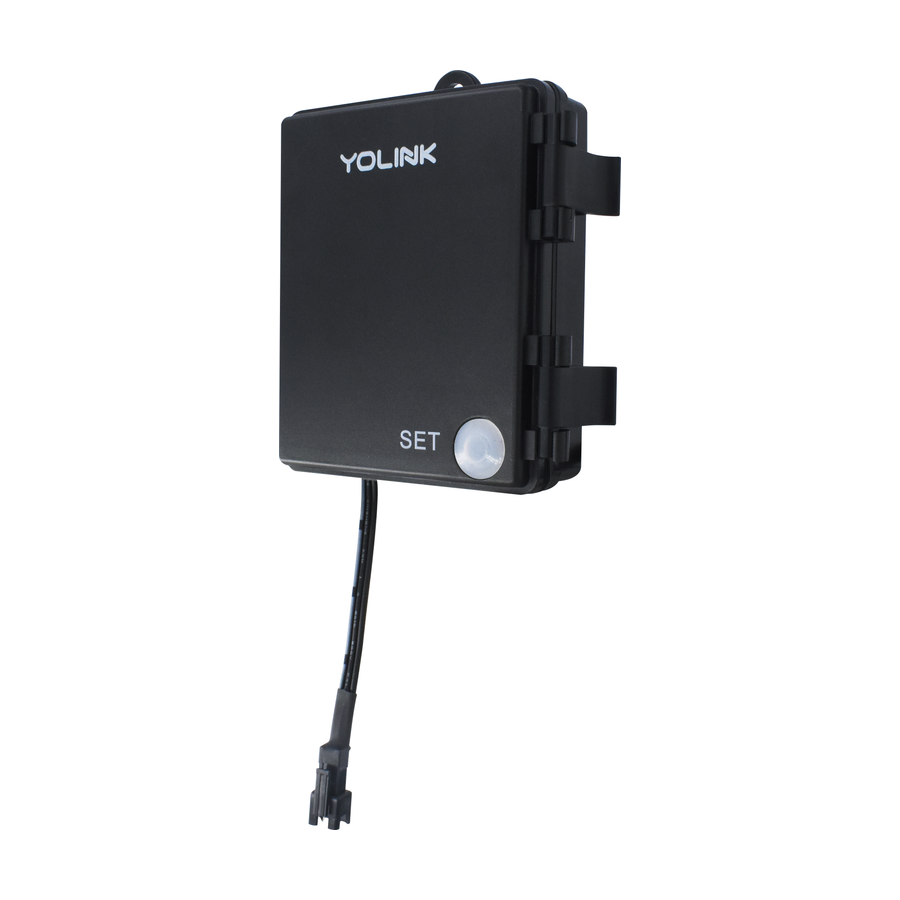

Smart Outdoor Alarm Controller (Only).
Audible and/or visible devices can include sirens, strobes, lights, horns, bells, chimes, buzzers, etc.
A compatible relay or electric strike may be connected within the controller’s rated output; higher loads require a correctly rated separate relay.
A compatible door or motion sensor can trigger the alarm under configured day and time rules.
The alarm can be configured to sound when a monitored door remains open beyond a selected interval.
