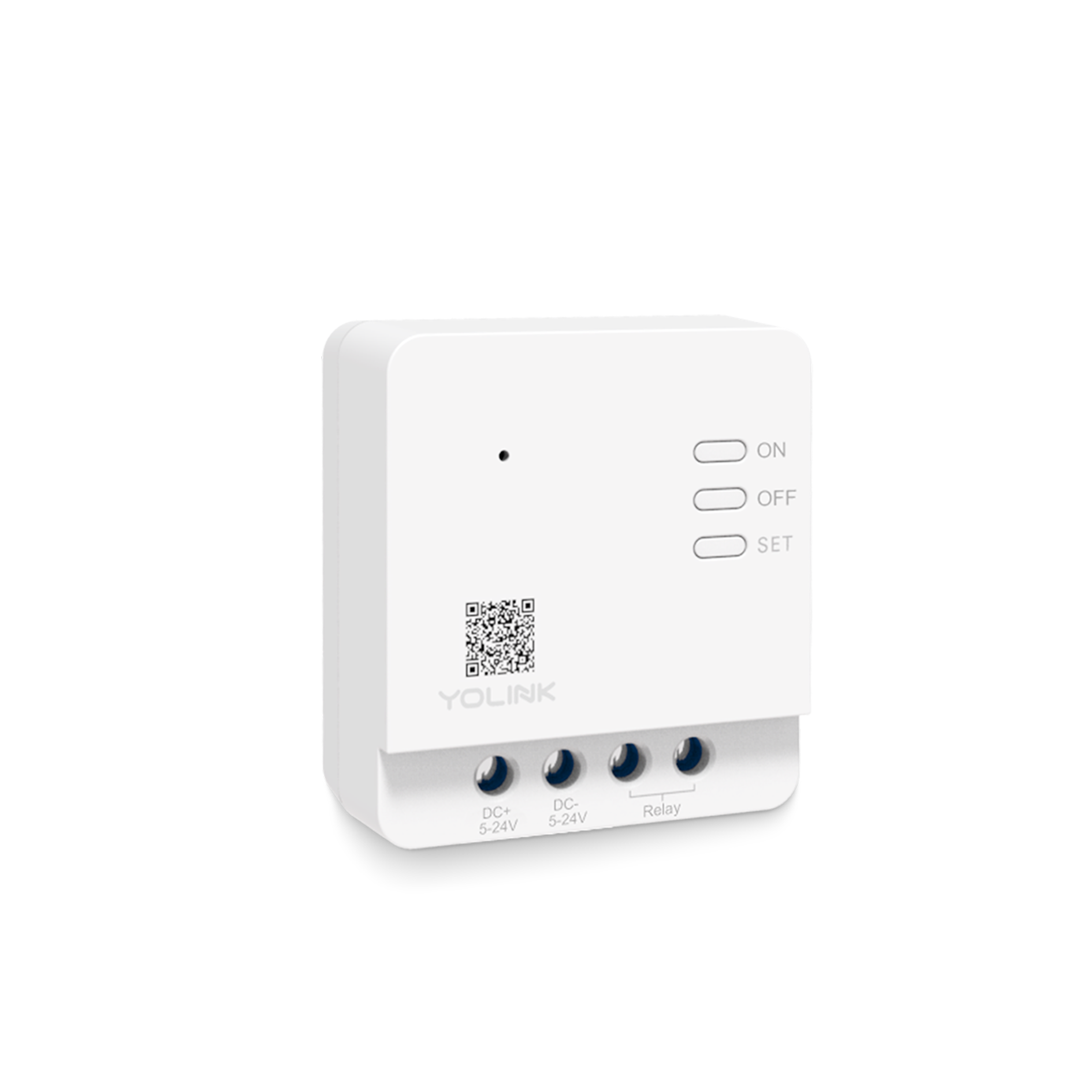

YoLink Relay

YS5706

Product Support

Documentation

Frequently-Asked Questions

Q: Can I use the YoLink Relay to connect a louder non-smart outdoor siren?

A: Yes, you can use the YoLink Relay to connect an outdoor siren, provided it meets the electrical connection requirements specified in the YoLink Relay manual: http://www.yosmart.com/support/YS5706-UC/docs/instruction

Please note that the YoLink Relay is only responsible for triggering the siren to activate or silence; it cannot adjust the volume of the siren.


Q: If there is a power outage and the power is restored, will the YoLink Relay automatically turn back on?

A: You can customize the power-on behavior in the YoLink app. Go to the Device screen, tap the three dots in the upper right corner to access the Device Details screen, and select "Power on status." From there, you can set the relay to turn back on to its previous state (last state), turn all on, or turn all off.


Q: How can I delete scheduled items in the YoLink app?

A: To delete a scheduled item in the YoLink app, simply swipe left on the schedule you wish to remove. This action will delete the selected schedule.


Q: Can I see the remaining time for the timer on the YoLink Relay?

A: Yes, make sure your YoLink app is up to date. The remaining time for the timer should be displayed on the device screen within the app.


Q: Can I control the YoLink Relay remotely?

A: Yes, you can remotely turn the relay on or off using the YoLink app.


Q: Does the YoLink Relay have scheduling and timer functions?

A: Absolutely! The relay has both scheduling and timer functions, which can be set up through the YoLink app.


Q: Can I create smart scenes and automations with the YoLink Relay?

A: Yes, you can set up smart scenes and automations for the Relay using the YoLink app.


Q: Is the YoLink Relay compatible with voice assistants like Alexa and Google Assistant?

A: Yes, the relay works with both Alexa and Google Assistant, allowing you to use voice commands to control it.


Q: Can I integrate the YoLink Relay with IFTTT?

A: Yes, the relay works with IFTTT, enabling you to create custom applets for turning the relay on or off.


Q: What is the maximum number of Controllers I can pair with a YoLink Relay?

A: With YoLink Control, there is no strict limit to the number of Controllers you can pair with a relay. However, for optimal performance, we recommend linking up to 128 devices.


Q: What is the difference between the schedule and timer functions in the YoLink app?

A: The timer function in the YoLink app is designed for one-time events, whereas the schedule function is for setting up recurring events. Both of these settings are saved in the device itself, allowing them to function even without an internet connection.


Q: Is there any way to configure a relay to shut something off if a condition is met? Ex, my pool pump is in a closed room, if it ever failed and leaked I’d like to shut it off automatically instead of being alerted and having to do it manually.

A: Yes, you can configure a relay to automatically shut off your pool pump if a certain condition is met, such as detecting a water leak. Considering that pool pumps have high starting currents, you should use a YoLink Relay in conjunction with a heavy-duty "dumb" relay to handle the pool pump's power requirements.

You can follow the instructions in the YoLink Relay manual to set up the relay system: http://www.yosmart.com/support/YS5706-UC/docs/instruction

Additionally, you'll need a water leak sensor to detect any leaks. Once you have both the relay and sensor installed, you can create an automation rule: when the water leak sensor detects water, it will send a signal to the YoLink Relay, which will then turn off the dumb relay, consequently shutting off the pool pump.


Q: Can the YoLink relay be connected to a pool pump?

A: The YoLink relay has a maximum current rating of 5 amps, which may not be sufficient for connecting directly to a pool pump. To safely connect the YoLink relay to a pool pump, you can use an intermediary, higher-capacity relay. Connect the YoLink relay to this high-capacity relay, and then connect the high-capacity relay to the pool pump.


Q: I want the YoLink relay to be activated when any sensor is triggered, but the strategy configuration doesn't give me the option to activate it. Is there a workaround?

A: You can create a workaround using the YoLink App by following these steps: First, navigate to the "Smart" section and select "Scene" to set up a new scene. Within this scene, enable the relay. Next, go to the alarm strategy settings and configure it to trigger the scene you just created. Keep in mind that only one scene can be triggered per strategy to avoid potential circular issues.


Q: I purchased the YoLink Relay from Amazon and expected a power supply to be included. Can I use a phone charger instead? Which wires should I use to obtain the correct voltage?

A: The YoLink relay operates on a voltage range of 5 to 24VDC. You can use a phone charger as a power supply, provided that it falls within this voltage range.


Q: How can I use a smart relay in conjunction with a temperature and humidity sensor as a temperature controller using YoLink Control Tech?

A: To use YoLink Control Tech with a smart relay and temperature/humidity sensor, you'll need the YS8004-UC weatherproof temperature sensor, as it currently supports YoLink Control. When you receive the YS8004 sensor and YS5706 relay, contact YoLink customer support to update the firmware, as the necessary version isn't publicly released.

After updating the firmware, follow these steps to configure the temperature controller:

For high temperature alerts to turn ON the relay and low temperature alerts to turn OFF the relay:

1. Turn on the relay.

2. Press and hold the set button on the temperature sensor for 5 seconds until the green LED blinks.

3. Press and hold the set button on the relay for 5 seconds until the green LED blinks.

For high temperature alerts to turn OFF the relay and low temperature alerts to turn ON the relay:

1. Turn off the relay.

2. Press and hold the set button on the temperature sensor for 5 seconds until the green LED blinks.

3. Press and hold the set button on the relay for 5 seconds until the green LED blinks.

Q: Why does the YoLink Relay disconnect frequently?

A: There are two possible reasons:

Incomplete device status loading due to poor mobile phone network connectivity. Ensure that your mobile phone has a strong and stable network connection for optimal performance.

Insufficient interval time between device operations. If the device is operated too quickly or repeatedly, it may not fully respond, leading to connectivity issues. Ensure that the interval time between operations is more than 6 seconds to avoid this problem.


Q: Can the YoLink Relay work with other brand smart devices?

A: The YoLink Relay offers remote control through the YoLink app, timer and scheduling functions, and the ability to create smart scenes and automation between the relay and YoLink sensors. It is also compatible with Alexa, Google Assistant, and IFTTT.


Q: Does the programming work when the internet is down?

A: If the internet is disconnected, remote control of the YoLink Relay through the app will not work. However, schedules and timers saved in the device itself will continue to function. YoLink Control, which allows you to use the YoLink Remote to turn the Smart Relay on or off, can also operate without an internet connection.
